Lensagon T47M-13-105

Super High Res Object Side Telecentric Lens for 56.7mm (diagonal) sensor, Magnification: 1.3x, WD 105mm, F# 10.8, NA 0.06, DOF 281um, Opt.Dist. 0.03

 Compare
SKU: 11008 Category:

Product Description

The Object Side Telecentric Lens T47M-13-105 is suitable for sensors up to 47 megapixel and with an image format of 56.7mm (diagonal).

Magnification 1.3
Mount M72
Aperture 10.8
Working Distance (WD) 105 mm
Depth of Field (DOF) 281 μm
Resolution (Object Side) 5.6 μm
Numerical Aperture (NA) 0.06
Image Format (max.) 56.7mm (diagonal)
Megapixel 47
Field of View (FOV) 37.46mm x 22.3mm
Lens Type Object Side
Telecentricity 0.03
Optical Distortion (max.) 0.03 %
Special Feature Super High Res
pdf

Additional Information

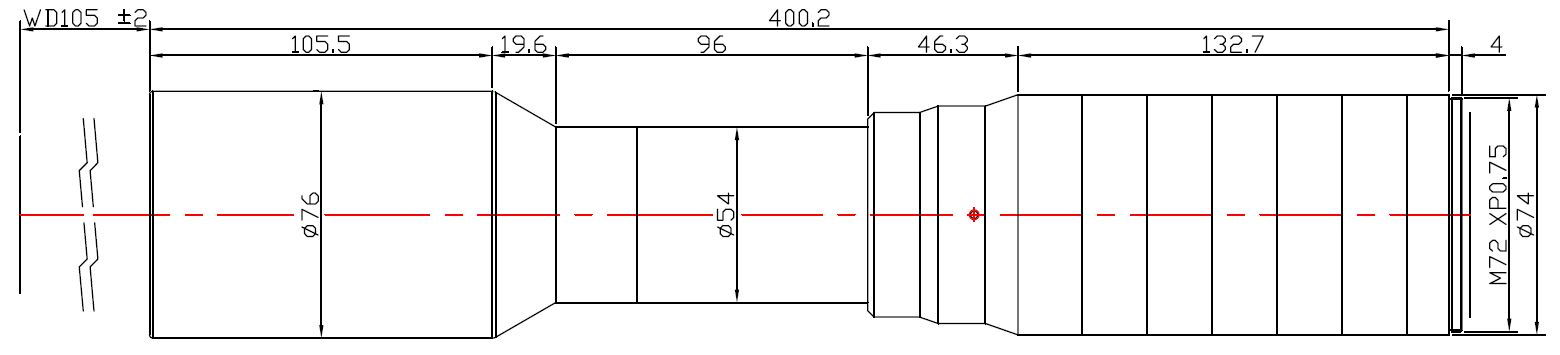

Technical Drawing:

Drawing
