Lensagon T47M-087-137I

Super High Res Object Side Telecentric Lens for 56.7mm (diagonal) sensor, Magnification: 0.87x, WD 137mm, F# 8.3, NA 0.052, DOF 482um, Opt.Dist. 0.07

 Compare
SKU: 11004 Category:

Product Description

The Object Side Telecentric Lens T47M-087-137I is suitable for sensors up to 47 megapixel and with an image format of 56.7mm (diagonal).

Magnification 0.87 x
Mount M72 *
Working F-Number 8.3
Working Distance (WD) 137 mm
Depth of Field (DOF) 482 μm
Resolution (Object Side) 6.4 μm
Numerical Aperture (NA) 0.052
Image Format (max.) 56.7mm (diagonal)
Megapixel (max.) 47 MP
Field of View (FOV) 55.97mm x 33.33mm
Telecentric Type Object Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.07 %
Special Feature Super High Res

* Other mounts are available on request.

pdf

Additional Information

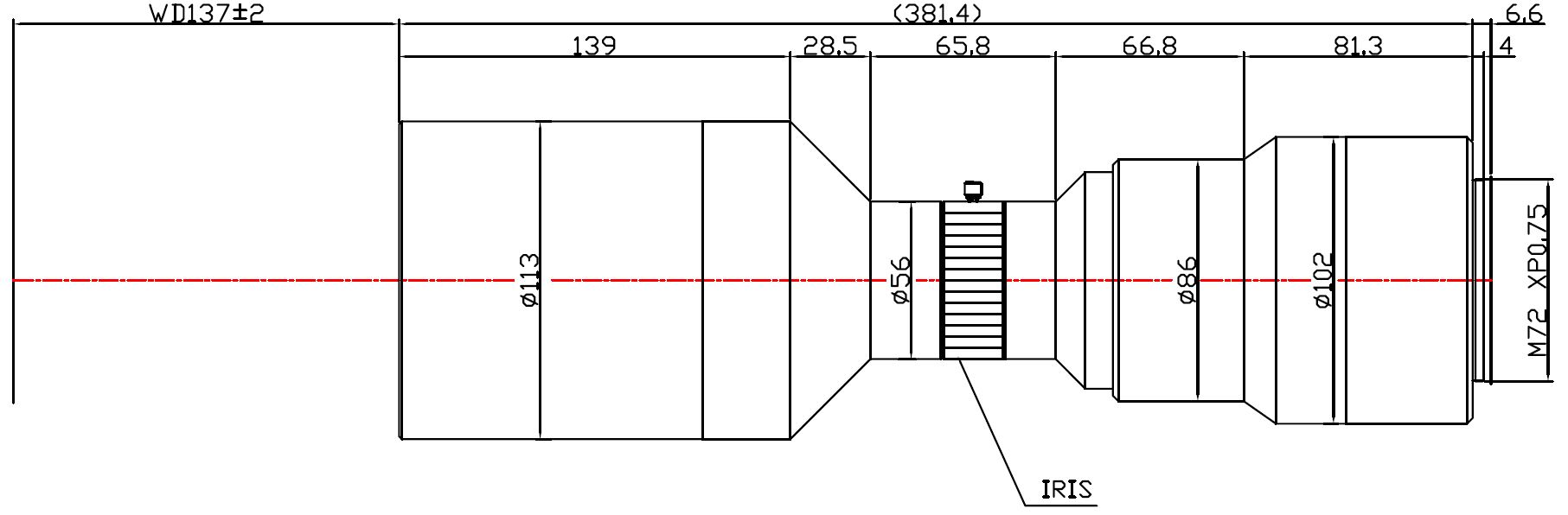

Drawing
