T25M-15-100I

Lensagon T25M-15-100I

Super High Res Object Side Telecentric Lens for 32mm (diagonal) sensor, Magnification: 1.5x, WD 100mm, F# 10, NA 0.075, DOF 160um, Opt.Dist. 0.03

 Compare
SKU: 10721 Category:

Product Description

The Object Side Telecentric Lens T25M-15-100I is suitable for sensors up to 25 megapixel and with an image format of 32mm (diagonal).

Magnification 1.5
Mount F-Mount
Aperture 10
Working Distance (WD) 100 mm
Depth of Field (DOF) 160 μm
Resolution (Object Side) 4.47 μm
Numerical Aperture (NA) 0.075
Image Format (max.) 32mm (diagonal)
Megapixel 25
Field of View (FOV) 15.36mm X 15.36mm @ 25M CCD
Lens Type Object Side
Telecentricity 0.03
Optical Distortion (max.) 0.03 %
Special Feature Super High Res
pdf

Additional Information

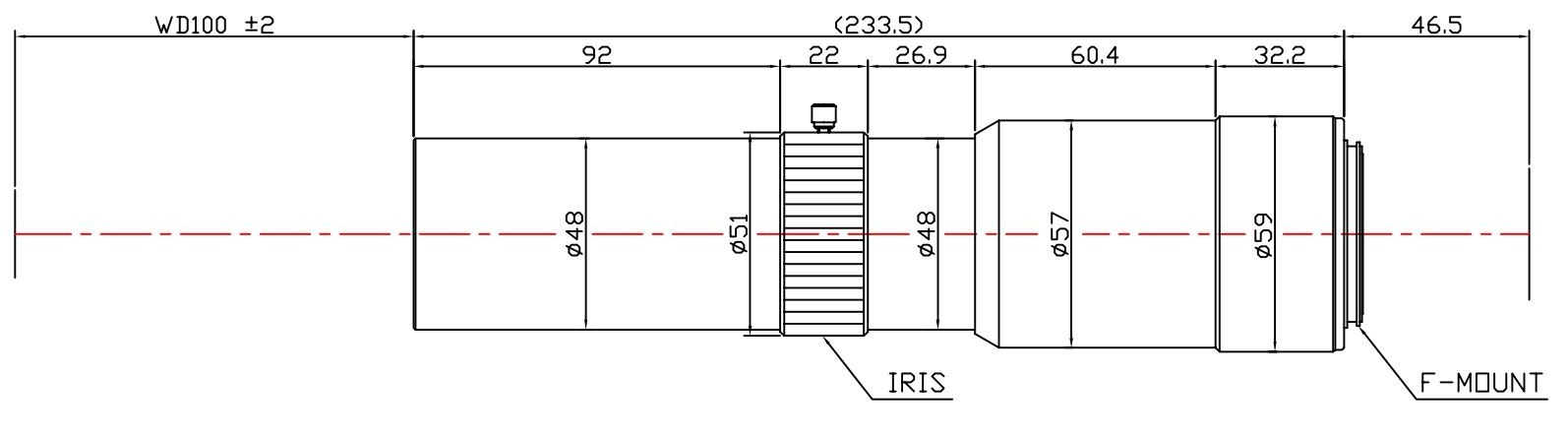

Technical Drawing:

Drawing
