Lensagon T25M-06-132I

Lensagon T25M-06-132I

Super High Res Object Side Telecentric Lens for 32mm (diagonal) sensor, Magnification: 0.6x, WD 132mm, F# 6.3, NA 0.048, DOF 625um, Opt.Dist. 0.04

 Compare
SKU: 10719 Category:

Product Description

The Object Side Telecentric Lens T25M-06-132I is suitable for sensors up to 25 megapixel and with an image format of 32mm (diagonal).

Magnification 0.6 x
Mount M48 *
Working F-Number 6.3
Working Distance (WD) 132 mm
Depth of Field (DOF) 625 μm
Resolution (Object Side) 7 μm
Numerical Aperture (NA) 0.048
Image Format (max.) 32mm (diagonal)
Megapixel (max.) 25 MP
Field of View (FOV) 37.8mm X 37.8mm @ 25M
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.04 %
Special Feature Super High Res

* Other mounts are available on request.

pdf

Additional Information

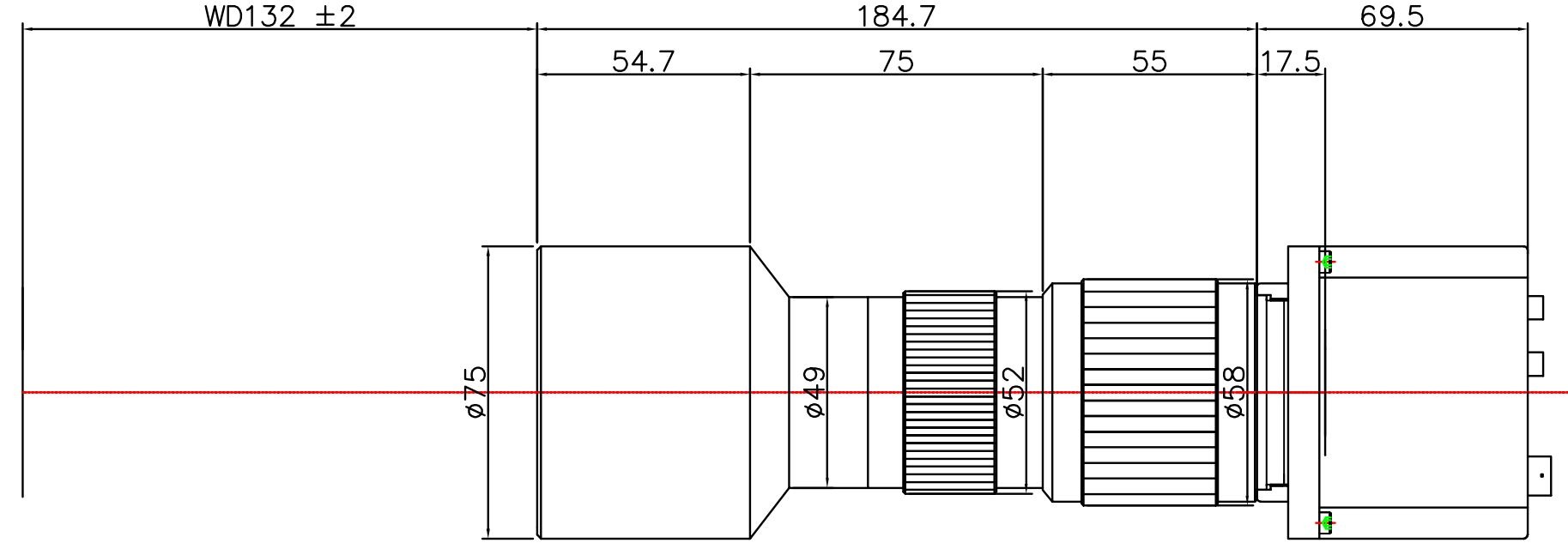

Drawing
