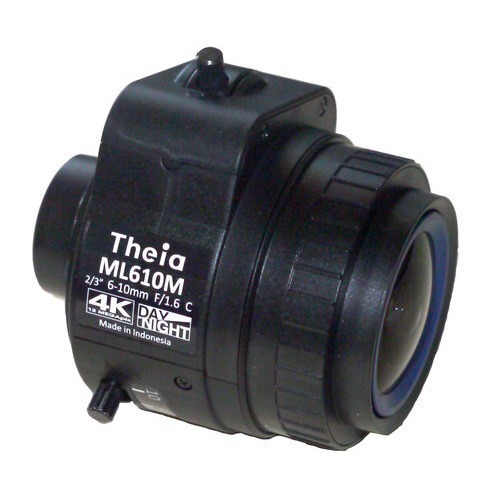

Theia ML610M

Theia ML610M

12 Megapixel C-Mount lens for 2/3 inch sensors, F1.6, f=6mm

 Compare
SKU: 11210 Category:

Product Description

The C-Mount lens Theia ML610M is suitable for current sensors up to 12 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 2/3 inch
Focal Length 6 mm
max. Focal Length 10
Aperture (f#) 1.6
MOD 0.1 m
Angle of View (D) 111°
Megapixel 12 MP
IR Correction Yes
Image Circle 11 mm
Weight 70 g
Focus manual-lock
Typ Standard
pdf

Additional Information

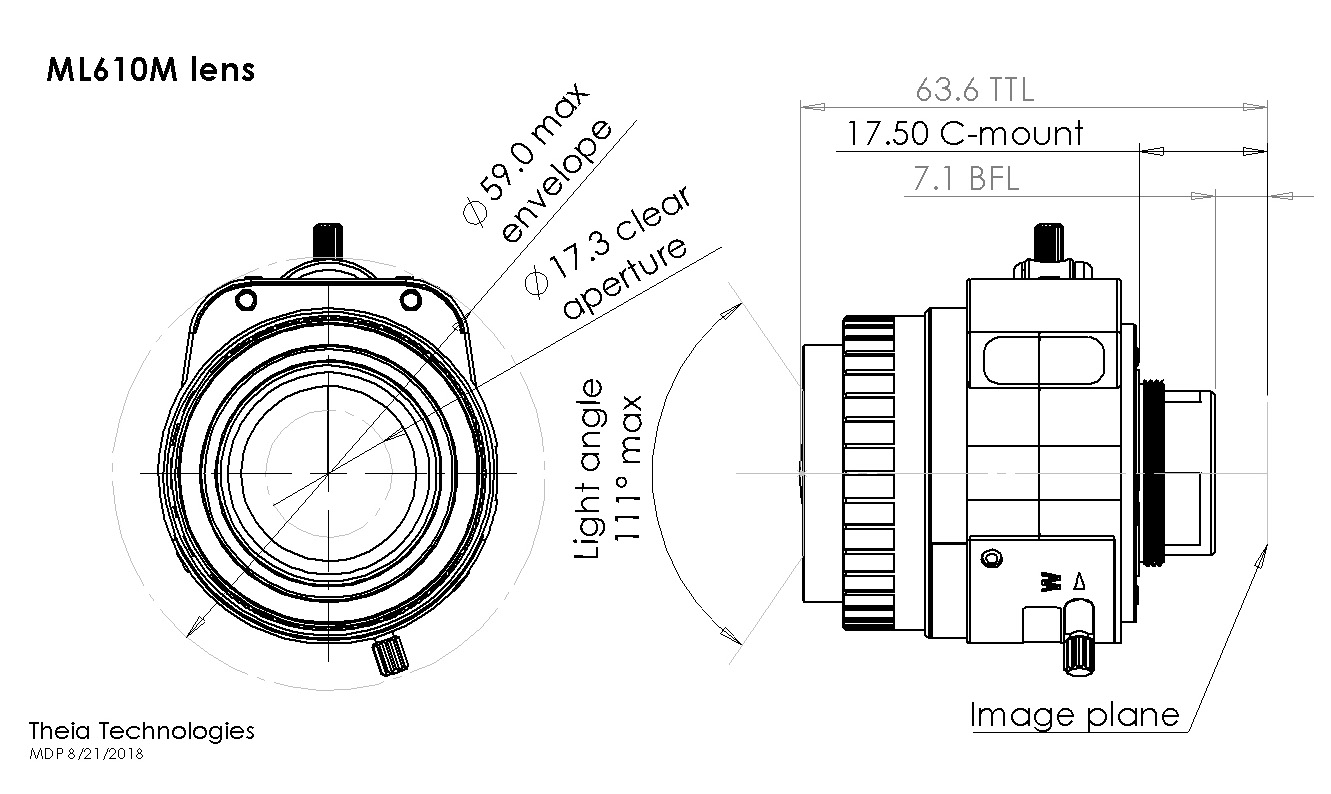

Technical Drawing:

Drawing
