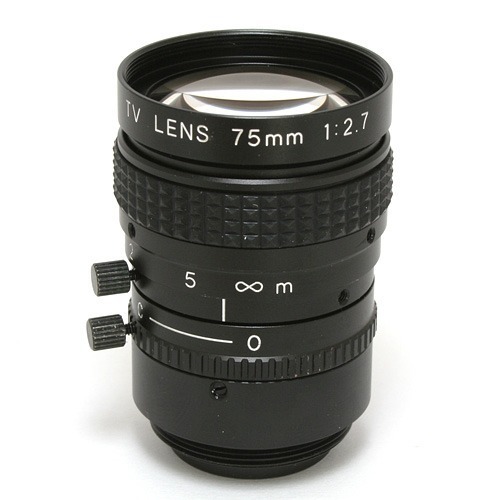

Lensagon CY7527

Lensagon CY7527

0.4 Megapixel C-Mount lens for 2/3 inch sensors, F2.7, f=75mm

 Compare
SKU: 00184 Category:

Product Description

The C-Mount lens Lensagon CY7527 is suitable for sensors below 1 megapixel with an image format of 2/3 inch.

Mount C-Mount
Sensor 2/3 inch
Focal Length 75 mm
Aperture (f#) 2.7
MOD 1 m
Angle of View (D) 8.39°
Megapixel 0.4 MP
IR Cut Filter No
TV Distortion 0.31
Image Circle 11 mm
Weight 59 g
Iris manual-lock
Focus manual-lock
Filter Size M30.5 P=0.5
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
