Lensagon CY1614

Lensagon CY1614

0.4 Megapixel C-Mount lens for 2/3 inch sensors, F1.4, f=16mm

 Compare
SKU: 00180 Category:

Product Description

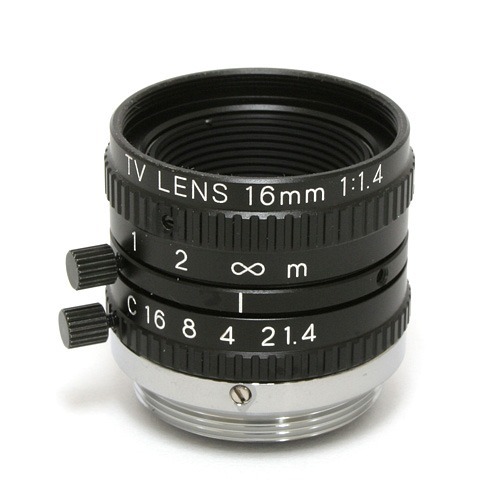

The C-Mount lens Lensagon CY1614 is suitable for sensors below 1 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 2/3 inch
Focal Length 16 mm
Aperture (f#) 1.4
MOD 0.4 m
Back Focal Length 12.44
Angle of View (D) 37.94°
Megapixel 0.4 MP
IR Cut Filter No
TV Distortion -0.2
Image Circle 11 mm
Weight 40 g
Iris manual-lock
Focus manual-lock
Filter Size M27 P=0.5
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
