Lensagon CVM1664NDGS

Lensagon CVM1664NDGS

1 Megapixel C-Mount lens for 1 inch sensors, F1.8, f=16mm

 Compare
SKU: 00743 Category:

Product Description

The C-Mount lens Lensagon CVM1664NDGS is suitable for common sensors up to 1 megapixel with an image format of 1 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 1 inch
Focal Length 16 mm
max. Focal Length 64
Aperture (f#) 1.8
MOD 1 m
Angle of View (D) 57.9°
Megapixel 1 MP
IR Cut Filter No
TV Distortion -3.4
Weight 370 g
Iris manual-lock
Focus manual-lock
Filter Size M58 x P=0.75
Typ Varifocal
pdf

Additional Information

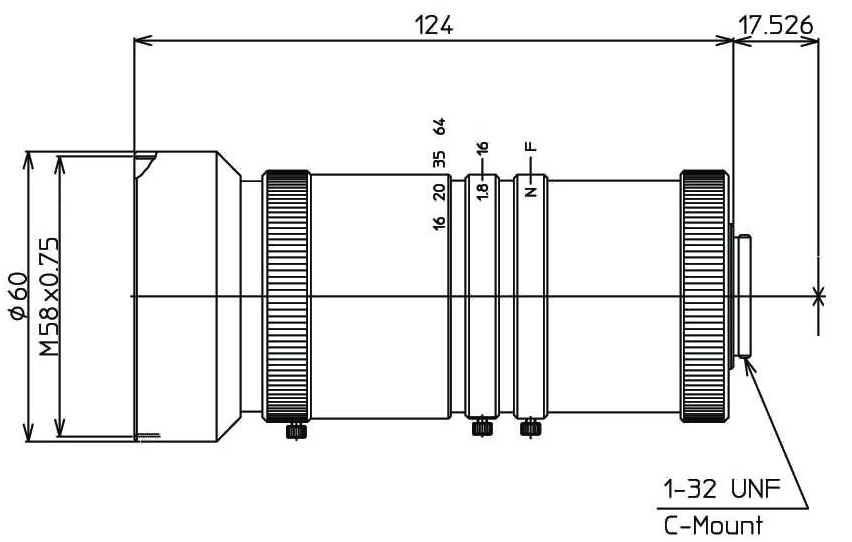

Technical Drawing:

Drawing
