Lensagon CM5014GS

1 Megapixel C-Mount lens for 1 inch sensors, F1.4, f=50mm

 Compare
SKU: 00206 Category:

Product Description

The C-Mount lens Lensagon CM5014GS is suitable for common sensors up to 1 megapixel with an image format of 1 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 1 inch
Focal Length 50 mm
Aperture (f#) 1.4
MOD 0.5 m
Back Focal Length 14.8
Angle of View (D) 18°
Megapixel 1 MP
IR Cut Filter No
Weight 210 g
Iris manual-lock
Focus manual-lock
Filter Size M40.5 x P=0.5mm
Typ Standard
pdf

Additional Information

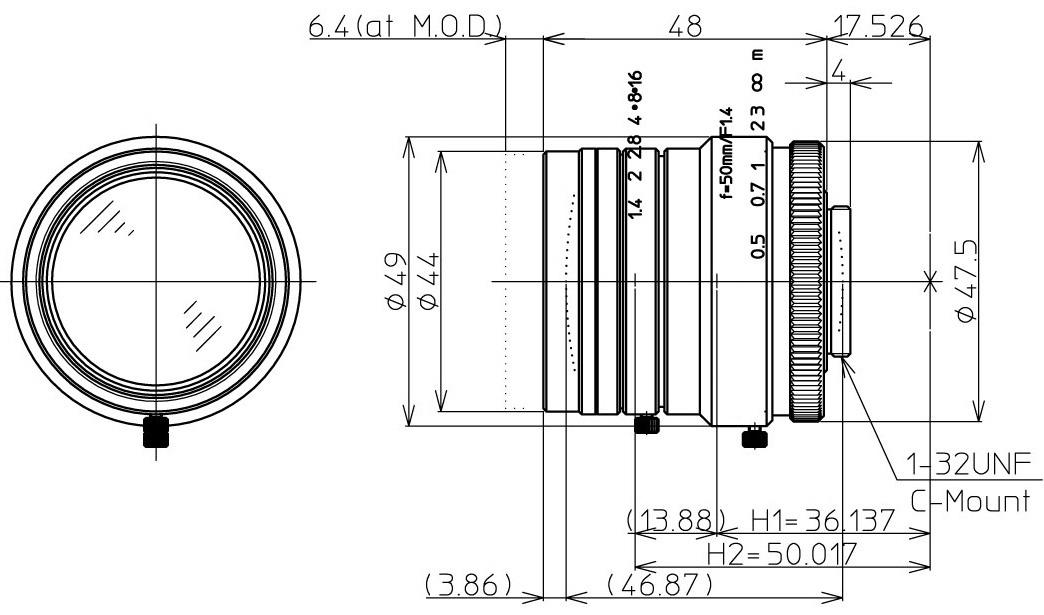

Technical Drawing:

Drawing
