Lensagon CMFA2520ND

Lensagon CMFA2520ND

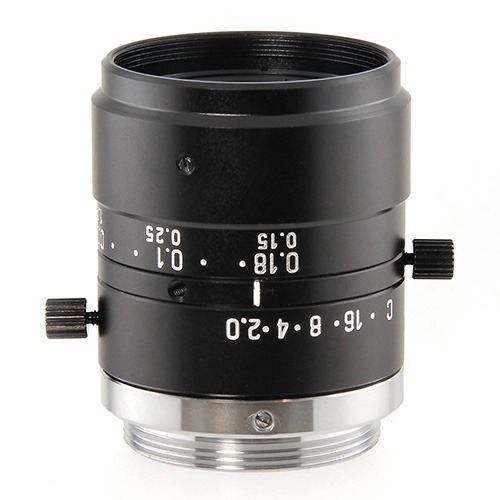

1 Megapixel C-Mount lens for 2/3 inch sensors, F2, f=25mm

 Compare
SKU: 00035 Category:

Product Description

The C-Mount lens Lensagon CMFA2520ND is suitable for common sensors up to 1 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

MountC-Mount
Sensor2/3 inch
Focal Length25 mm
Aperture (f#)2
MOD0.15 m
max. WD1
Angle of View (D)24.81°
Megapixel1 MP
IR CorrectionNo
IR Cut FilterNo
TV Distortion-0.01
Image Circle11 mm
Weight54 g
Irismanual-lock
Focusmanual-lock
FilterM27 P=0.5
TypStandard
pdf

Additional Information

Technical Drawing:

Drawing
