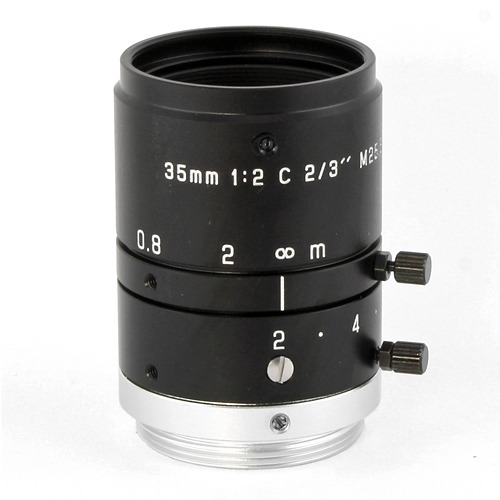

Lensagon CM3520MJ

Lensagon CM3520MJ

1 Megapixel C-Mount lens for 2/3 inch sensors, F2, f=35mm

 Compare
SKU: 00064 Category:

Product Description

The C-Mount lens Lensagon CM3520MJ is suitable for common sensors up to 1 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 2/3 inch
Focal Length 35 mm
Aperture (f#) 2
MOD 0.25 m
Back Focal Length 18.06
Angle of View (D) 17.8°
Megapixel (max.) 1 MP
IR Cut Filter No
Optical Distortion -0.2 %
Weight 55 g
Iris manual-lock
Focus manual-lock
Filter M25.5
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
