Lensagon CM1214GS

1 Megapixel C-Mount lens for 1 inch sensors, F1.4, f=12mm

 Compare
SKU: 00202 Category:

Product Description

The C-Mount lens Lensagon CM1214GS is suitable for common sensors up to 1 megapixel with an image format of 1 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 1 inch
Focal Length 12 mm
Aperture (f#) 1.4
MOD 0.3 m
Back Focal Length 12.6
Angle of View (D) 67.6° / H: 55.6° / V: 42.5°
Megapixel (max.) 1 MP
IR Cut Filter No
TV Distortion -1.58
Weight 160 g
Iris manual-lock
Focus manual-lock
Filter M35.5 x P=0.5
Typ Standard
pdf

Additional Information

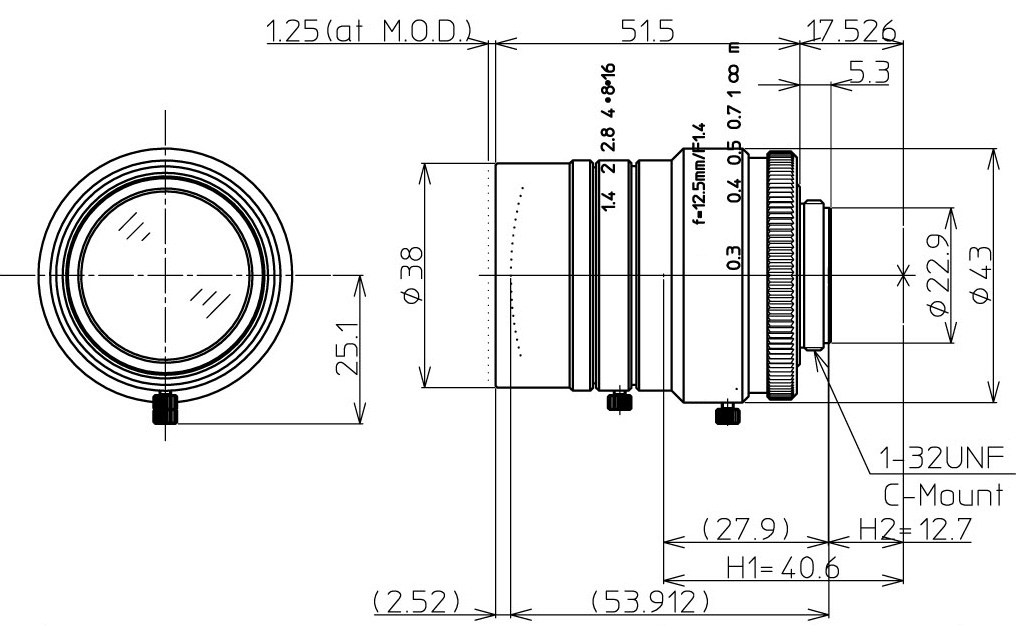

Drawing
