Lensagon CM0618GS

1 Megapixel C-Mount lens for 1 inch sensors, F1.8, f=6mm

 Compare
SKU: 00952 Category:

Product Description

The C-Mount lens Lensagon CM0618GS is suitable for common sensors up to 1 megapixel with an image format of 1 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 1 inch
Focal Length 6.00 mm
Aperture (f#) 1.80
MOD 0.10 m
Back Focal Length 11.10
Angle of View (D) 108.40° / H: 96.80° / V: 79.40°
Megapixel (max.) 1.00 MP
IR Cut Filter No
TV Distortion -0.20
Weight 215.00 g
Iris manual-lock
Focus manual-lock
Typ Standard
pdf

Additional Information

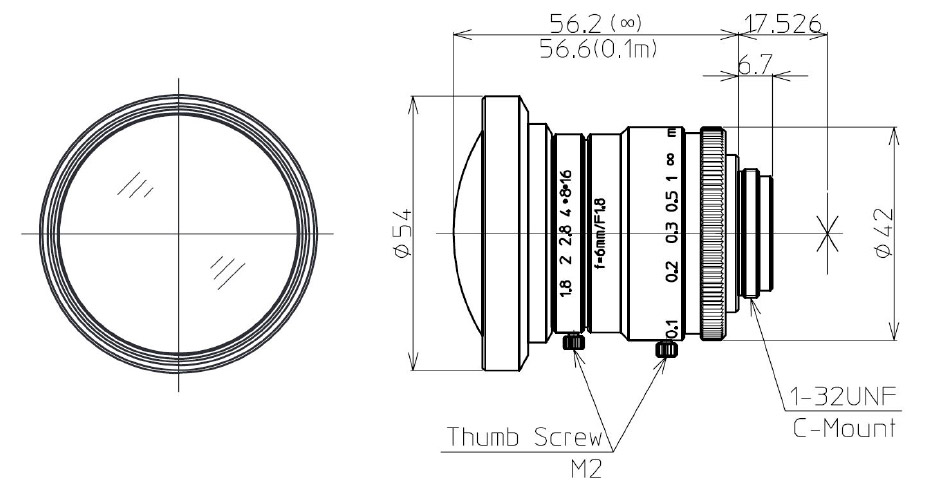

Drawing
