Product Description
The C-Mount lens Lensagon CK8M5028S23 is suitable for current sensors up to 8 megapixel with an image format of 2/3 inch.
Mount | C-Mount |
---|---|
Sensor | 2/3 inch |
Focal Length | 50 mm |
Aperture (f#) | 2.8 |
MOD | 0.4 m |
Angle of View (D) | 11.67° / H: 8.81° / V: 7.38° |
Megapixel (max.) | 8 MP |
Optical Distortion | 0.01 % |
Iris | manual-lock |
Focus | manual-lock |
Typ | Standard |
![pdf](http://www.lensation.de/pdf/pdf.jpg)
Additional Information

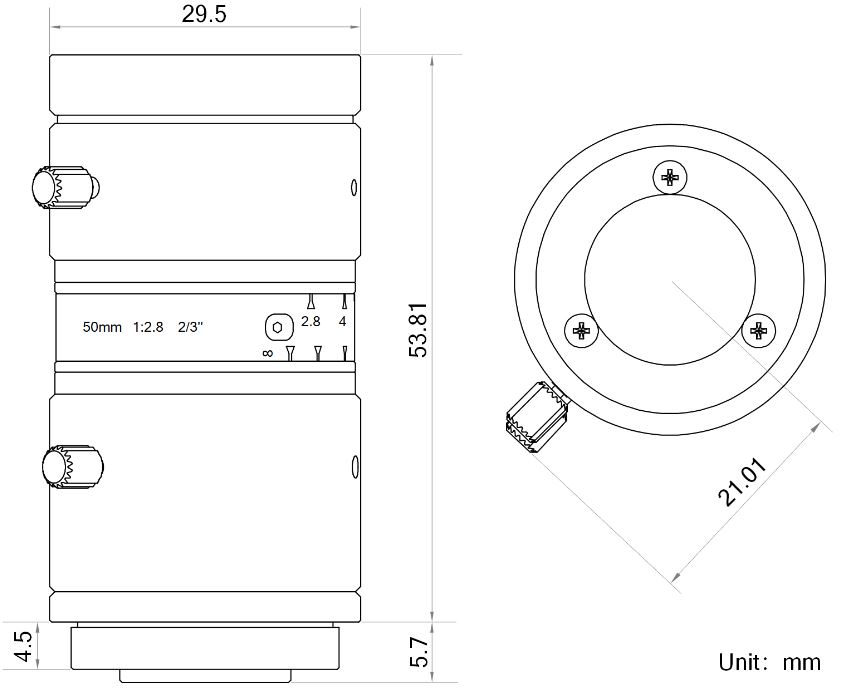

![Drawing](https://www.lensation.de/drawings/CK8M5028S23_DW1.jpg)
