Lensagon CK6M0628S118

6 Megapixel C-Mount lens for 1/1.8 inch sensors, F2.8, f=6mm

 Compare
SKU: 11031 Category:

Product Description

The C-Mount lens Lensagon CK6M0628S118 is suitable for current sensors up to 6 megapixel with an image format of 1/1.8 inch.

Mount C-Mount
Sensor 1/1.8 inch
Focal Length 6 mm
Aperture (f#) 2.8
MOD 0.035 m
Angle of View (D) 74.8°
Angle of View (H) 63.5°
Angle of View (V) 44.8°
Megapixel 6 MP
IR Correction No
IR Cut Filter No
Optical Distortion -1.5 %
Image Circle 9 mm
Iris manual-lock
Focus manual-lock
Typ Standard
pdf

Additional Information

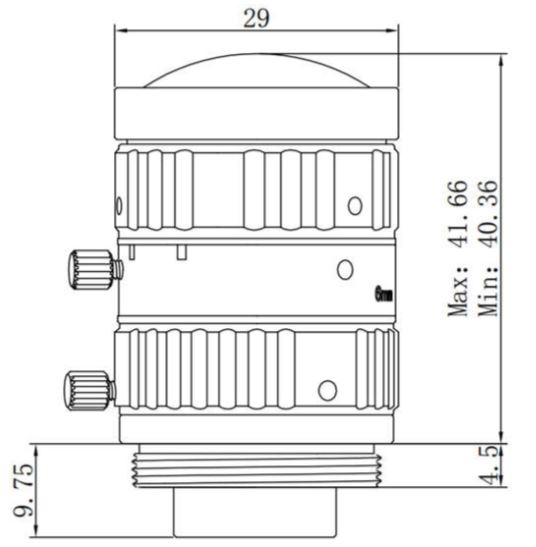

Technical Drawing:

Drawing
