CK5M7520S23

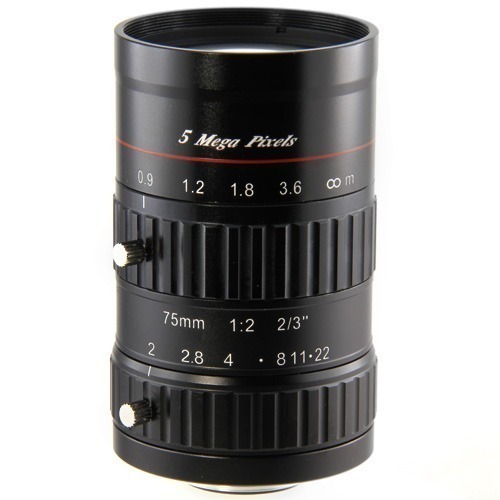

Lensagon CK5M7520S23

5 Megapixel C-Mount lens for 2/3 inch sensors, F2, f=75mm

 Compare
SKU: 00044 Category:

Product Description

The C-Mount lens Lensagon CK5M7520S23 is suitable for common sensors up to 5 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 2/3 inch
Focal Length 75 mm
Aperture (f#) 2
MOD 0.9 m
Angle of View (D) 6.1°
Angle of View (H) 4.9°
Angle of View (V) 3.7°
Megapixel 5 MP
IR Cut Filter No
TV Distortion -0.02
Weight 110 g
Iris manual-lock
Focus manual-lock
Filter Size M40.5 P=0.5
Typ Standard
pdf

Additional Information

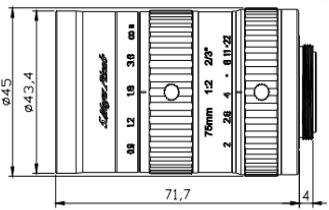

Technical Drawing:

Drawing
