CK5M1220S23

Lensagon CK5M1220S23

5 Megapixel C-Mount lens for 2/3 inch sensors, F2, f=12mm

 Compare
SKU: 10624 Category:

Product Description

The C-Mount lens Lensagon CK5M1220S23 is suitable for common sensors up to 5 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 2/3 inch
Focal Length 12 mm
Aperture (f#) 2
MOD 0.1 m
Angle of View (D) 46.9°
Angle of View (H) 38.2°
Angle of View (V) 29°
Megapixel 5 MP
IR Cut Filter No
TV Distortion -0.21
Weight 95 g
Iris manual-lock
Focus manual-lock
Typ Standard
pdf

Additional Information

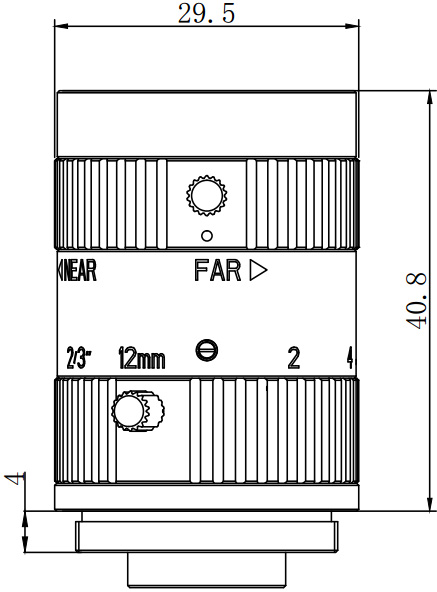

Technical Drawing:

Drawing
