Lensagon CK12M2528S11

12 Megapixel C-Mount lens for 1.1 inch sensors, F2.8, f=25mm

 Compare
SKU: 11035 Category:

Product Description

The C-Mount lens Lensagon CK12M2528S11 is suitable for current sensors up to 12 megapixel with an image format of 1.1 inch.

Mount C-Mount
Sensor 1.1 inch
Focal Length 25 mm
Aperture (f#) 2.8
MOD 0.12 m
Angle of View (D) 36.7°
Megapixel 12 MP
IR Correction No
IR Cut Filter No
Optical Distortion 0.4 %
Image Circle 17.6 mm
Iris manual-lock
Focus manual-lock
Filter Size M35.5 x 0.5
Typ Standard
pdf

Additional Information

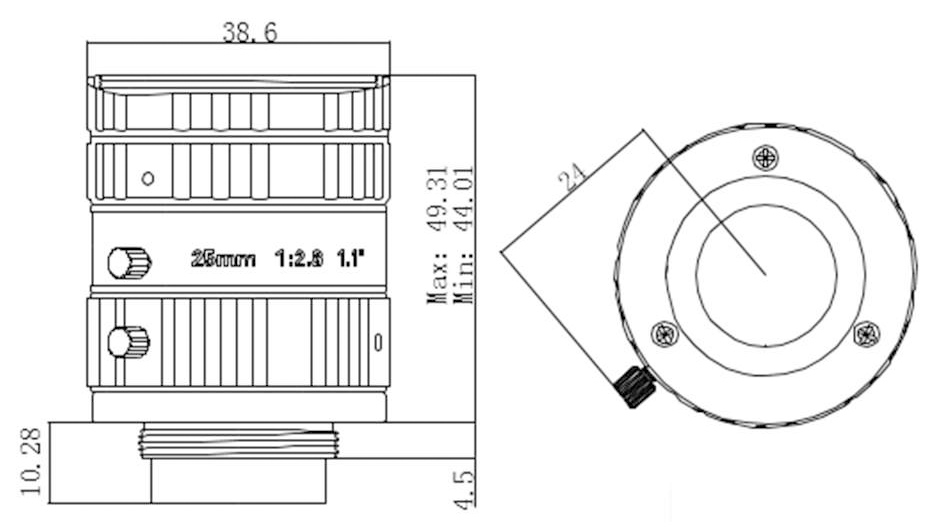

Technical Drawing:

Drawing
