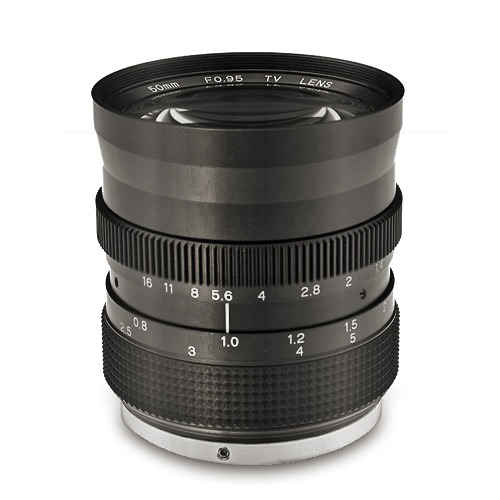

Lensagon CHS50095

Lensagon CHS50095

1 Megapixel C-Mount lens for 1 inch sensors, F0.95, f=50mm

 Compare
SKU: 00210 Category:

Product Description

The C-Mount lens Lensagon CHS50095 is suitable for common sensors up to 1 megapixel with an image format of 1 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 1 inch
Focal Length 50 mm
Aperture (f#) 0.95
Back Focal Length 25.62
Angle of View (D) 18.2°
Megapixel 1 MP
IR Cut Filter No
Weight 470 g
Iris manual
Focus manual
Filter Size M62 P=0.75
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
