Lensagon CHS17095

Lensagon CHS17095

1 Megapixel C-Mount lens for 2/3 inch sensors, F0.95, f=17mm

 Compare
SKU: 00208 Category:

Product Description

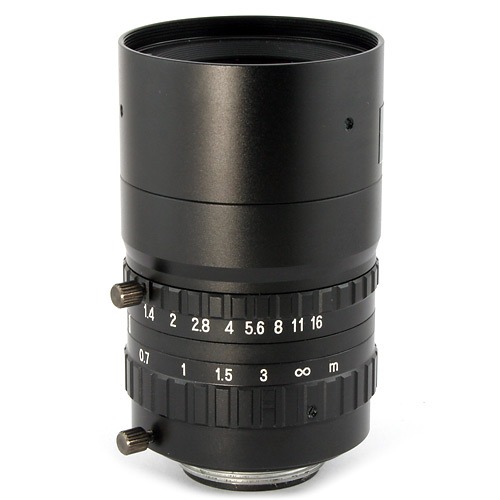

The C-Mount lens Lensagon CHS17095 is suitable for common sensors up to 1 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 2/3 inch
Focal Length 17 mm
Aperture (f#) 0.95
Back Focal Length 13.89
Angle of View (D) 35.9°
Megapixel 1 MP
IR Cut Filter No
Weight 165 g
Iris manual
Focus manual
Filter Size M40.5 P=0.5
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
