C5M3514GSV2

Lensagon C5M3514GSV2

5 Megapixel C-Mount lens for 1.1 inch sensors, F1.4, f=35mm

 Compare
SKU: 10864 Category:

Product Description

The C-Mount lens Lensagon C5M3514GSV2 is suitable for common sensors up to 5 megapixel with an image format of 1.1 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 1.1 inch
Focal Length 35 mm
Aperture (f#) 1.4
MOD 0.11 m
Back Focal Length 17.526
Angle of View (D) 28.23°
Angle of View (H) 19.3°
Angle of View (V) 19.3°
Megapixel 5 MP
IR Cut Filter No
TV Distortion 0.07
Image Circle 17.4 mm
Weight 230 g
Iris manual-lock
Focus manual-lock
Filter Size M46 P=0.75
Typ Standard
pdf

Additional Information

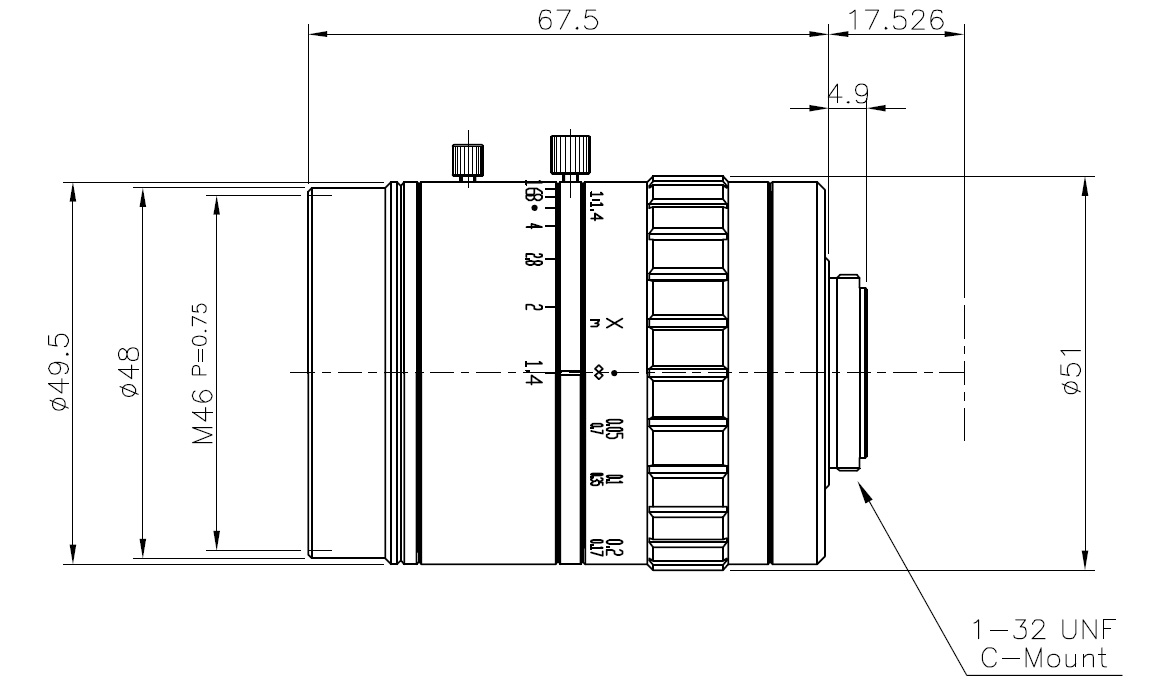

Technical Drawing:

Drawing
