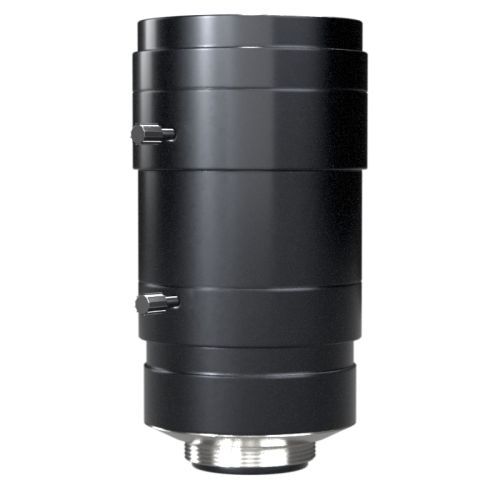

Lensagon C10M1620S43

10 Megapixel C-Mount lens for 4/3 inch sensors, F2, f=16mm

 Compare
SKU: 10825 Category:

Product Description

The C-Mount lens Lensagon C10M1620S43 is suitable for current sensors up to 10 megapixel with an image format of 4/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 4/3 inch
Focal Length 16 mm
Aperture (f#) 2
MOD 0.1 m
Back Focal Length 13
Angle of View (D) 72°
Angle of View (H) 60.6°
Angle of View (V) 47.2°
Megapixel 10 MP
IR Cut Filter No
Image Circle 23 mm
Weight 250 g
Iris manual-lock
Focus manual-lock
Filter Size M40.5 x P=0.5mm
Typ Standard
