BM6018C

Lensagon BM6018C

1 Megapixel S-Mount lens for 1/3 inch sensors, F1.8, f=6mm

 Compare
SKU: 00540 Category:

Product Description

The S-Mount lens Lensagon BM6018C is suitable for common sensors up to 1 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3 inch
Focal Length 6 mm
Aperture (f#) 1.8
MOD 0.2 m
Back Focal Length 8.75
Angle of View (D) 60°
Angle of View (H) 48°
Angle of View (V) 34.5°
Megapixel 1 MP
IR Cut Filter Yes
Weight 6 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

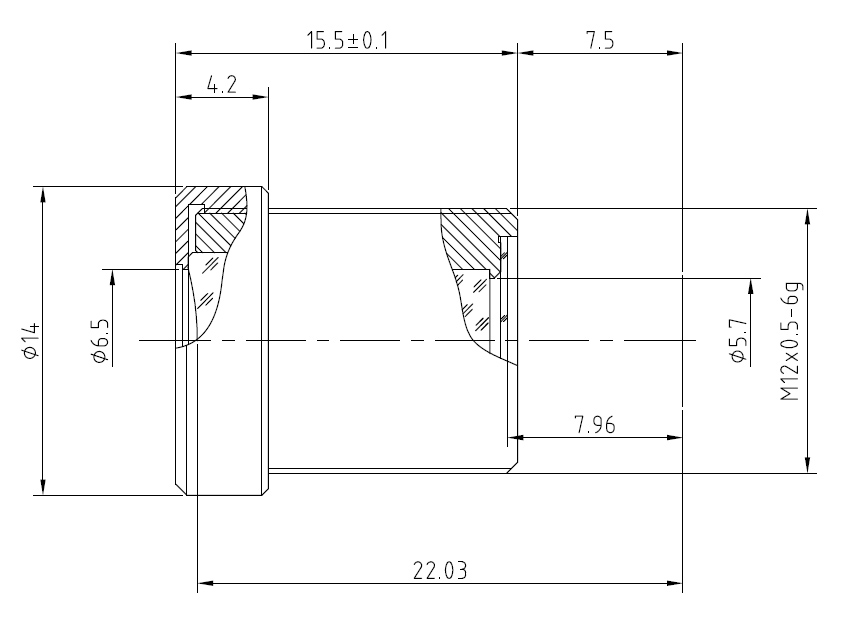

Technical Drawing:

Drawing

Technical Drawing:

Drawing
