BM4525S118ND

Lensagon BM4525S118ND

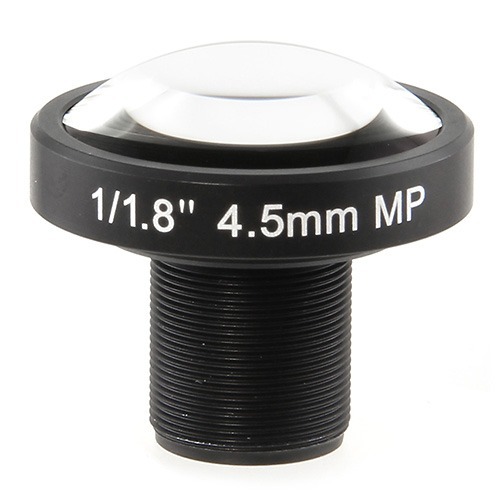

1 Megapixel S-Mount lens for 1/1.8 inch sensors, F2.5, f=4.5mm

 Compare
SKU: 10403 Category:

Product Description

The S-Mount lens Lensagon BM4525S118ND is suitable for common sensors up to 1 megapixel with an image format of 1/1.8 inch.

Mount S-Mount
Sensor 1/1.8 inch
Focal Length 4.5 mm
Aperture (f#) 2.5
MOD 0.1 m
Back Focal Length 6.4
Angle of View (D) 90°
Angle of View (H) 78°
Angle of View (V) 62°
Megapixel 1 MP
IR Cut Filter No
Optical Distortion -2.8 %
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
