Lensagon BM4018S118C

Lensagon BM4018S118C

3 Megapixel S-Mount lens for 1/1.8 inch sensors, F1.8, f=4mm

 Compare
SKU: 00609 Category:

Product Description

The S-Mount lens Lensagon BM4018S118C is suitable for common sensors up to 3 megapixel with an image format of 1/1.8 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/1.8 inch
Focal Length 4 mm
Aperture (f#) 1.8
MOD 0.2 m
Back Focal Length 8
Angle of View (D) 126°
Megapixel 3 MP
IR Cut Filter Yes
Optical Distortion -45 %
Weight 20 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

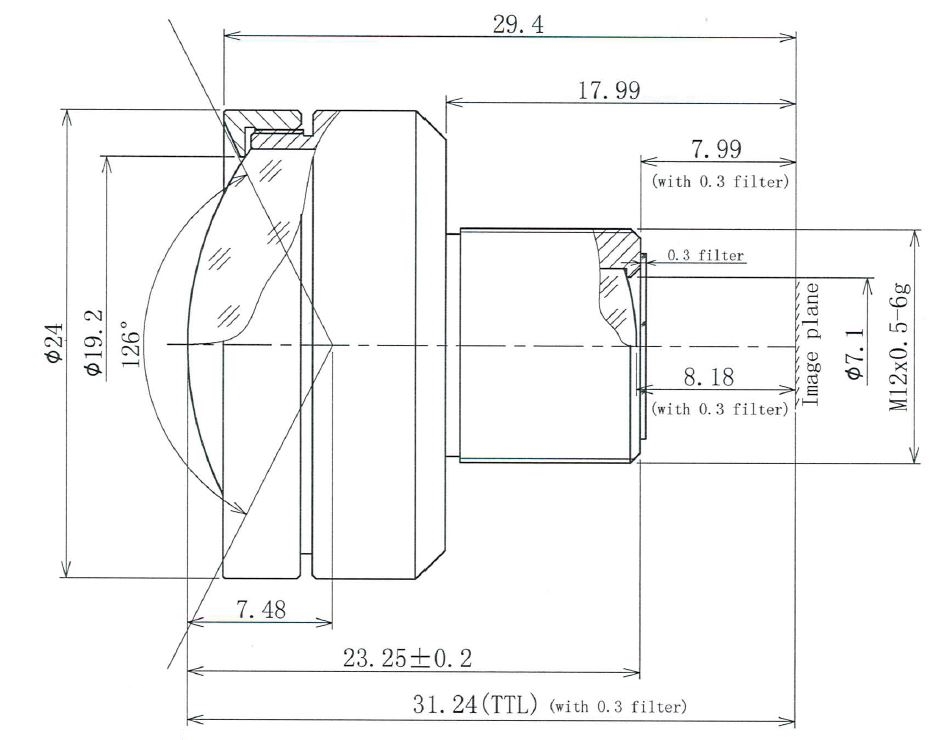

Technical Drawing:

Drawing

Technical Drawing:

Drawing
