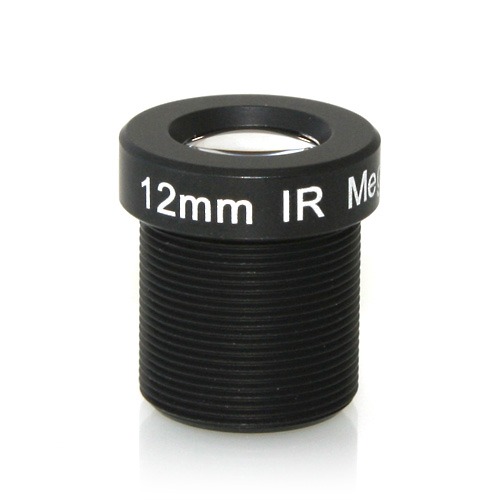

Lensagon BM12018C

Lensagon BM12018C

Megapixel S-Mount lens for 1/3 inch sensors, F1.8, f=12mm

 Compare
SKU: 00432 Category:

Product Description

The S-Mount lens Lensagon BM12018C is suitable for sensors below 1 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3 inch
Focal Length 12 mm
Aperture (f#) 1.8
MOD 0.2 m
Back Focal Length 6.54
Angle of View (D) 28.4°
IR Cut Filter Yes
Weight 5 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
