Lensagon BK5M5020

Lensagon BK5M5020

5 Megapixel S-Mount lens for 1/2 inch sensors, F2, f=5mm

 Compare
SKU: 11029 Category:

Product Description

The S-Mount lens Lensagon BK5M5020 is suitable for common sensors up to 5 megapixel with an image format of 1/2 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2 inch
Focal Length 5 mm
Aperture (f#) 2
MOD 1.3 m
Back Focal Length 6.2
Angle of View (D) 99.4°
Megapixel 5 MP
IR Correction Yes
IR Cut Filter No
Weight 10.02 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

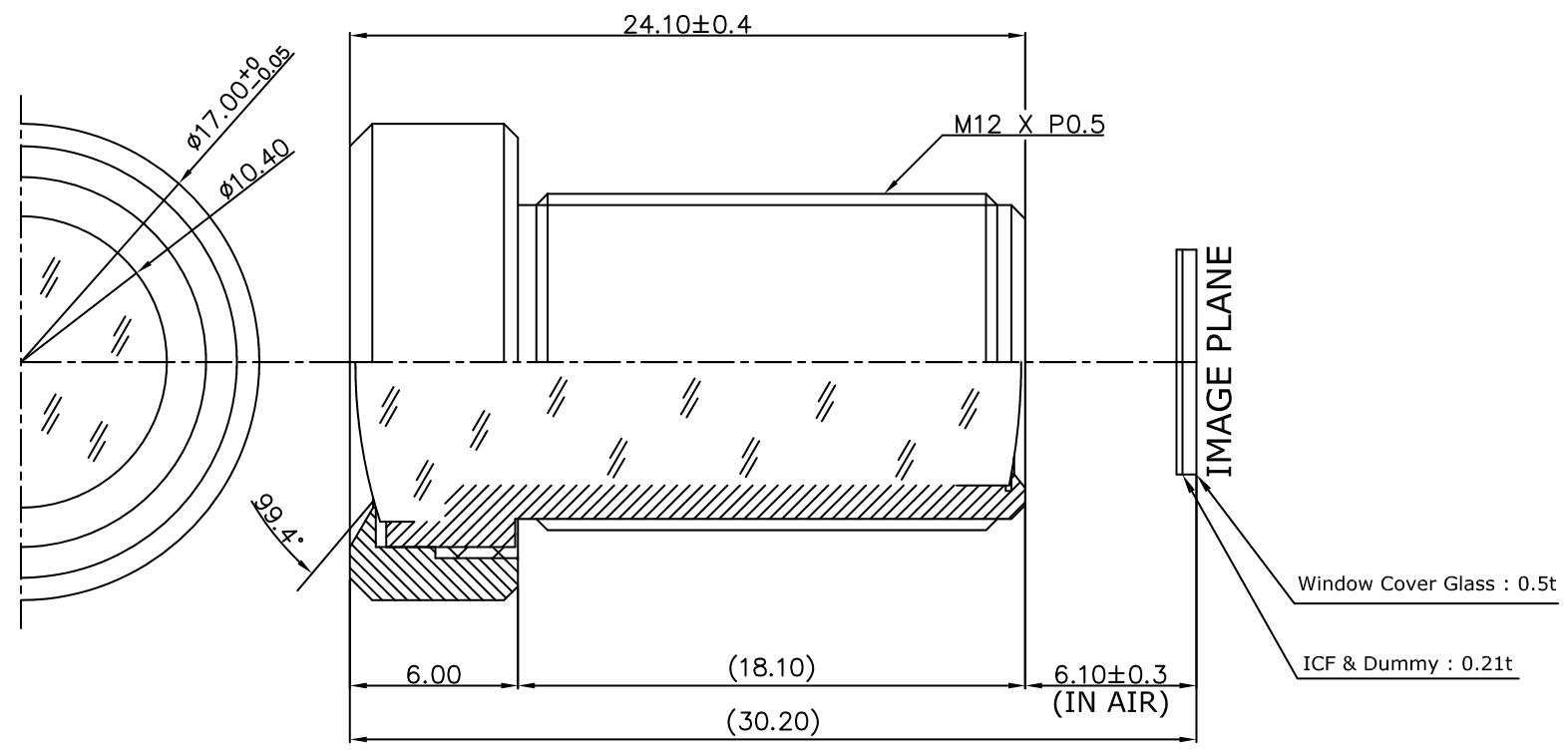

Technical Drawing:

Drawing
