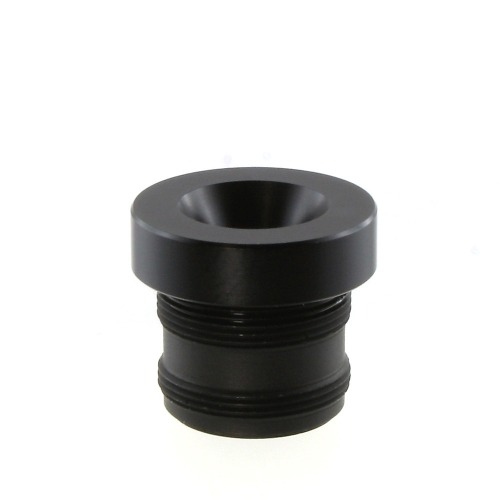

Lensagon BHR8020

Lensagon BHR8020

0.7 Megapixel S-Mount lens for 1/3 inch sensors, F2, f=8mm

 Compare
SKU: 09962 Category:

Product Description

The S-Mount lens Lensagon BHR8020 is suitable for sensors below 1 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3 inch
Focal Length 8 mm
Aperture (f#) 2
MOD 0.2 m
Back Focal Length 7.6
Angle of View (D) 43°
Megapixel 0.7 MP
IR Cut Filter No
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
