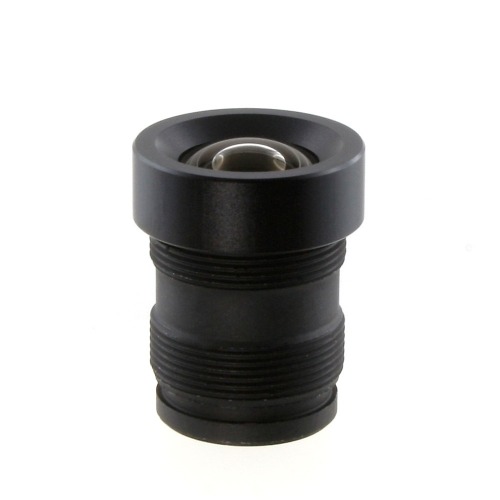

Lensagon BHR5620

Lensagon BHR5620

0.7 Megapixel S-Mount lens for 1/3 inch sensors, F2, f=5.6mm

 Compare
SKU: 00353 Category:

Product Description

The S-Mount lens Lensagon BHR5620 is suitable for sensors below 1 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3 inch
Focal Length 5.6 mm
Aperture (f#) 2
MOD 0.4 m
Back Focal Length 8.07
Angle of View (D) 65.3°
Megapixel (max.) 0.7 MP
IR Cut Filter Yes
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
