Lensagon BHR2125

Lensagon BHR2125

0.7 Megapixel S-Mount lens for 1/3 inch sensors, F2.5, f=2.1mm

 Compare
SKU: 09931 Category:

Product Description

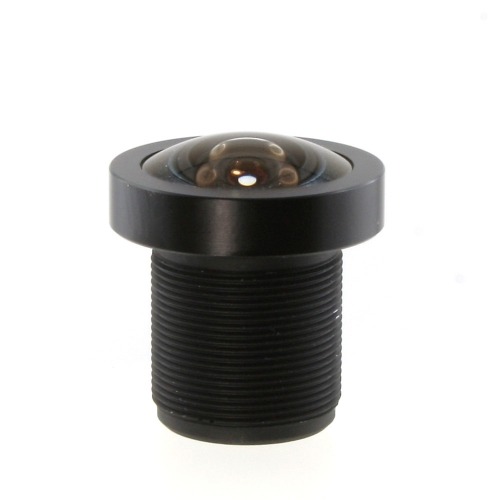

The S-Mount lens Lensagon BHR2125 is suitable for sensors below 1 megapixel with an image format of 1/3 inch.

Mount S-Mount
Sensor 1/3 inch
Focal Length 2.1 mm
Aperture (f#) 2.5
MOD 200 m
Back Focal Length 4.25
Angle of View (D) 165.7°
Megapixel 0.7 MP
IR Cut Filter No
Optical Distortion -85.1 %
Image Circle 6 mm
Weight 6.1 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
