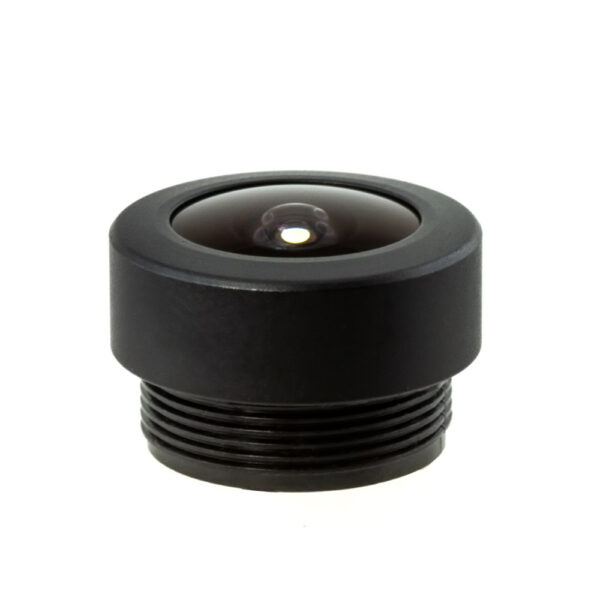

Lensagon BF5M19622

5 Megapixel S-Mount lens for 1/2.5 inch sensors, F2.2, f=1.96mm

 Compare
SKU: 11201 Category:

Product Description

The S-Mount lens Lensagon BF5M19622 is suitable for common sensors up to 5 megapixel with an image format of 1/2.5 inch.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 1.96 mm
Aperture (f#) 2.2
MOD 0.1 m
Back Focal Length 2.77
Angle of View (D) 180°
Megapixel 5 MP
IR Correction No
Image Circle 5.6 mm
Iris fixed
Focus fixed
Chief ray angle 15.3°
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
