Lensagon BF5M13720

Lensagon BF5M13720

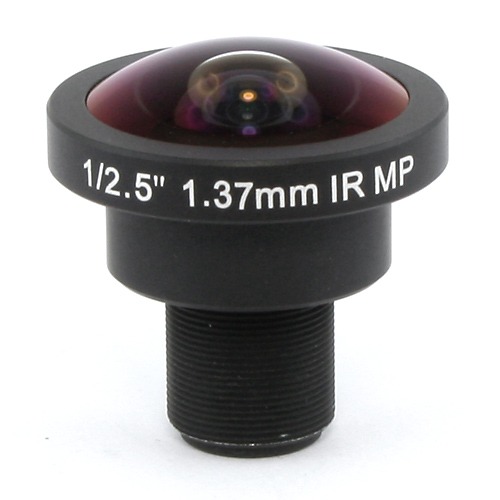

5 Megapixel Fisheye S-Mount lens for 1/2.5 inch sensors, F2, f=1.37mm

 Compare
SKU: 00956 Category:

Product Description

The Fisheye S-Mount lens Lensagon BF5M13720 is suitable for common sensors up to 5 megapixel with an image format of 1/2.5 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 1.37 mm
Aperture (f#) 2
MOD 0.15 m
Back Focal Length 6.11
Angle of View (D) 183°
Megapixel 5 MP
IR Correction Yes
Image Circle 4.15 mm
Weight 21 g
Iris fixed
Focus fixed
Typ Fisheye
pdf

Additional Information

Technical Drawing:

Drawing
