Lensagon BF10M10526S132

Lensagon BF10M10526S132

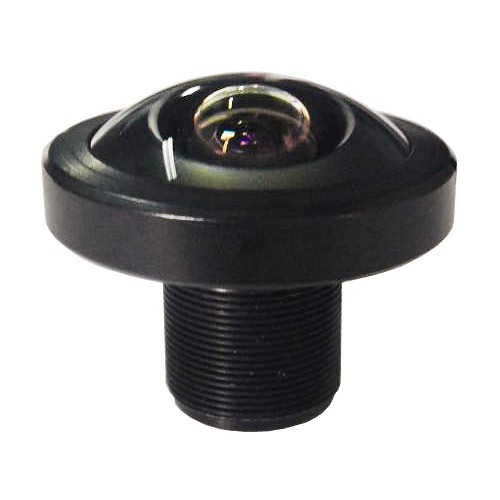

10 Megapixel Fisheye S-Mount lens for 1/3.2 inch sensors, F2.4, f=1.05mm

 Compare
SKU: 10830 Category:

Product Description

The S-Mount lens Lensagon BF10M10526S132 is suitable for current sensors up to 10 megapixel with an image format of 1/3.2 inch.

Mount S-Mount
Sensor 1/3.2 inch
Focal Length 1.05 mm
Aperture (f#) 2.4
MOD 0.1 m
Back Focal Length 3.2
Angle of View (D) 202°
Megapixel 10 MP
IR Cut Filter No
Image Circle 3.46 mm
Iris fixed
Focus fixed
Chief ray angle 5.2°
Typ Fisheye
pdf

Additional Information

Technical Drawing:

Drawing
