Lensagon B8M2624S125ND

8 Megapixel S-Mount lens for 1/2.5 inch sensors, F2.4, f=2.6mm

 Compare
SKU: 11427 Category:

Product Description

The S-Mount lens Lensagon B8M2624S125ND is suitable for current sensors up to 8 megapixel with an image format of 1/2.5 inch.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 2.6 mm
Aperture (f#) 2.4
MOD 0.2 m
Angle of View (D) 106° / H: 100° / V: 61°
Megapixel (max.) 8 MP
IR Correction Yes
Optical Distortion -0.12 %
Image Circle 7.4 mm
Iris fixed
Focus fixed
Chief ray angle 24.9 °
Typ Standard
pdf

Additional Information

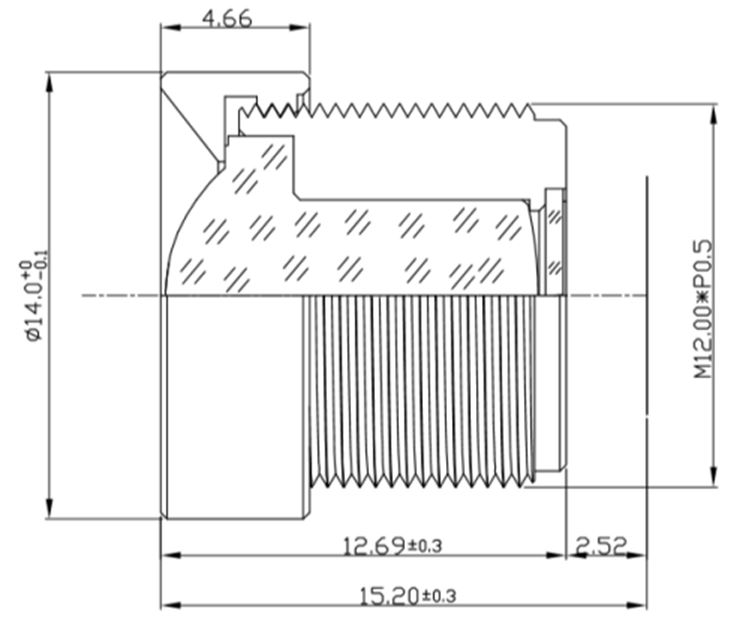

Drawing
