Product Description

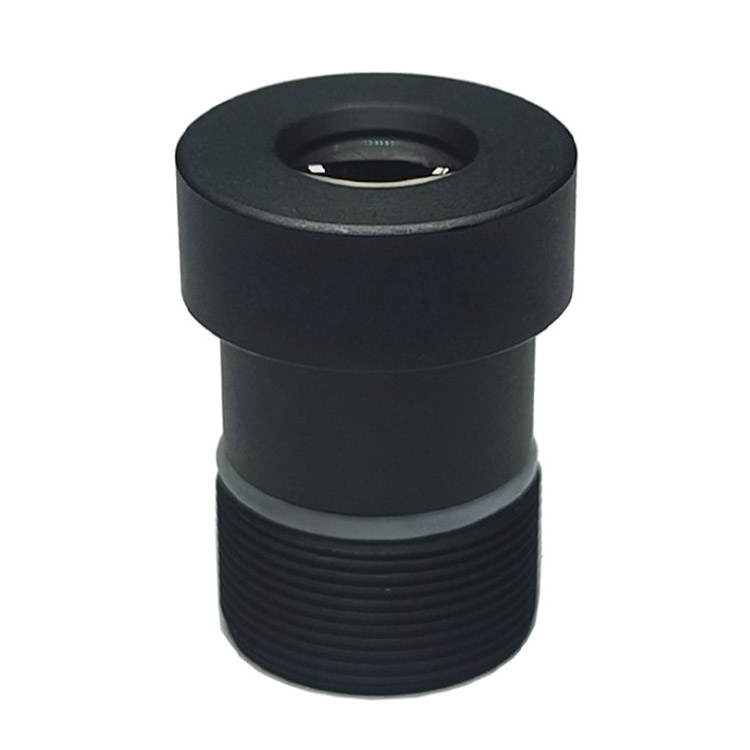

The S-Mount lens Lensagon B6M20056S23C is suitable for current sensors up to 6.00 megapixel with an image format of 2/3 inch.
| Mount | S-Mount |
|---|---|
| Sensor | 2/3 inch |
| Focal Length | 20.03 mm |
| Aperture (f#) | 5.61 |
| MOD | 0.10 m |
| Angle of View (D) | 29.20° / H: 22.60° / V: 18.90° |
| Megapixel (max.) | 6.00 MP |
| IR Cut Filter | Yes |
| Optical Distortion | 0.10 % |
| Image Circle | 11.00 mm |
| Iris | fixed |
| Focus | fixed |
| Chief ray angle | 16.07 ° |
| Typ | Standard |
