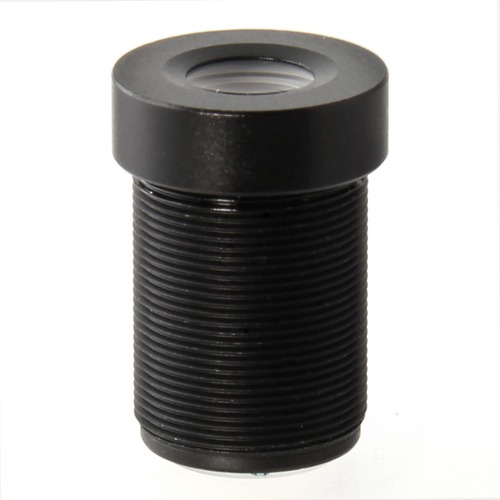

Lensagon B5M8018C

Lensagon B5M8018C

5 Megapixel S-Mount lens for 1/2.5 inch sensors, F1.8, f=8mm

 Compare
SKU: 09942 Category:

Product Description

The S-Mount lens Lensagon B5M8018C is suitable for common sensors up to 5 megapixel with an image format of 1/2.5 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 8 mm
Aperture (f#) 1.8
MOD 0.2 m
Back Focal Length 7.8
Angle of View (D) 52.1°
Megapixel 5 MP
IR Cut Filter Yes
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
