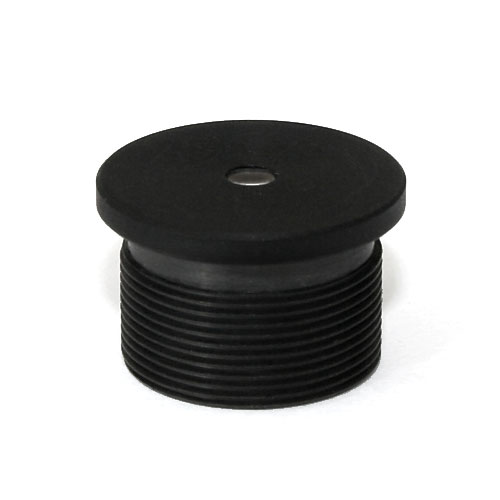

Lensagon B5M7630C

Lensagon B5M7630C

5 Megapixel S-Mount lens for 1/1.8 inch sensors, F3, f=7.6mm

 Compare
SKU: 00544 Category:

Product Description

The S-Mount lens Lensagon B5M7630C is suitable for common sensors up to 5 megapixel with an image format of 1/1.8 inch.

Mount S-Mount
Sensor 1/1.8 inch
Focal Length 7.6 mm
Aperture (f#) 3
MOD 0.2 m
Back Focal Length 4.58
Angle of View (D) 58°
Megapixel 5 MP
IR Cut Filter Yes
Optical Distortion 1.9 %
Weight 7 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
