Product Description
The S-Mount lens Lensagon B5M6228S125 is suitable for common sensors up to 5 megapixel with an image format of 1/2.5 inch.
Mount | S-Mount |
---|---|
Sensor | 1/2.5 inch |
Focal Length | 6.20 mm |
Aperture (f#) | 2.80 |
Back Focal Length | 4.66 |
Angle of View (D) | 68.00° |
Megapixel (max.) | 5.00 MP |
IR Cut Filter | No |
Optical Distortion | -1.50 % |
Iris | fixed |
Focus | fixed |
Typ | Standard |
![pdf](http://www.lensation.de/pdf/pdf.jpg)
Additional Information

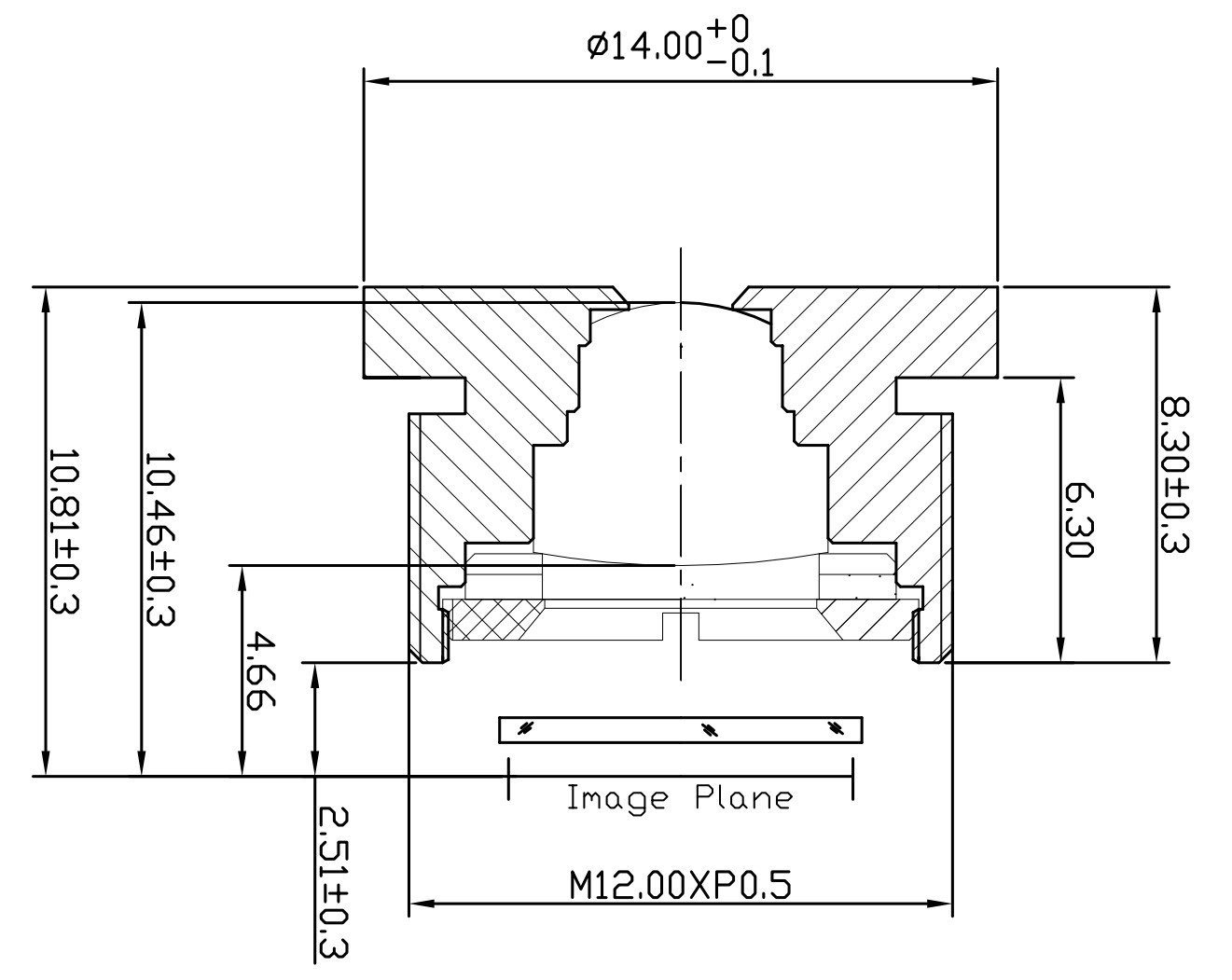

![Drawing](https://www.lensation.de/drawings/B5M6228S125_DW1.jpg)
