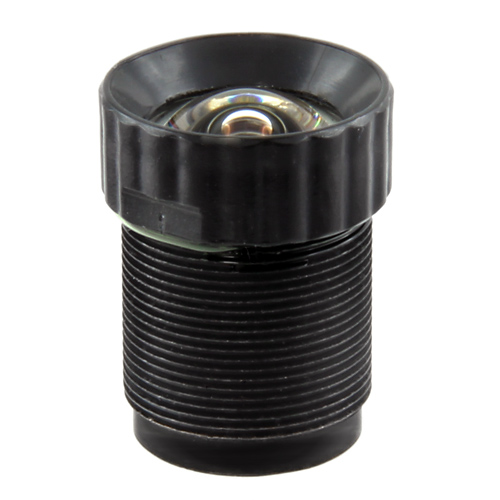

Lensagon B5M41430NDC

Lensagon B5M41430NDC

5 Megapixel S-Mount lens for 1/2.5 inch sensors, F3, f=4.14mm

 Compare
SKU: 10128 Category:

Product Description

The S-Mount lens Lensagon B5M41430NDC is suitable for common sensors up to 5 megapixel with an image format of 1/2.5 inch.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 4.14 mm
Aperture (f#) 3
MOD 0.2 m
Back Focal Length 5.45
Angle of View (D) 81.1°
Megapixel 5 MP
IR Cut Filter Yes
Optical Distortion 0.2 %
Weight 8.3 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
