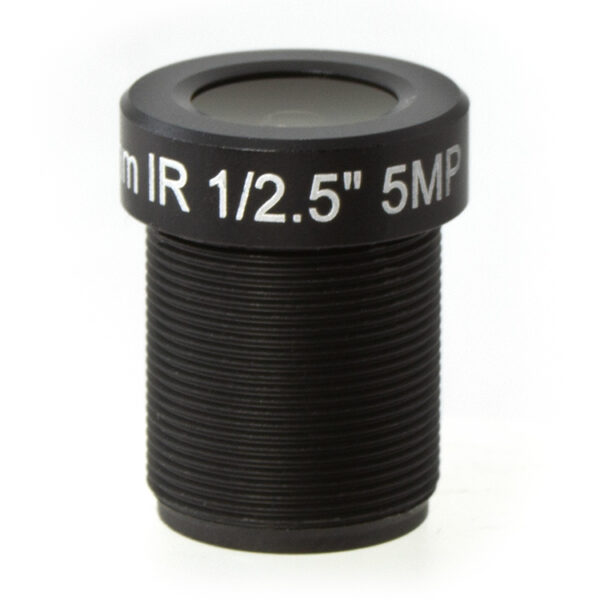

Lensagon B5M4020C

5 Megapixel S-Mount lens for 1/2.5 inch sensors, F2, f=4mm

 Compare
SKU: 10897 Category:

Product Description

The S-Mount lens Lensagon B5M4020C is suitable for common sensors up to 5 megapixel with an image format of 1/2.5 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 4 mm
Aperture (f#) 2
MOD 0.3 m
Back Focal Length 6.6
Angle of View (D) 114°
Megapixel 5 MP
IR Correction No
IR Cut Filter Yes
Weight 5 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

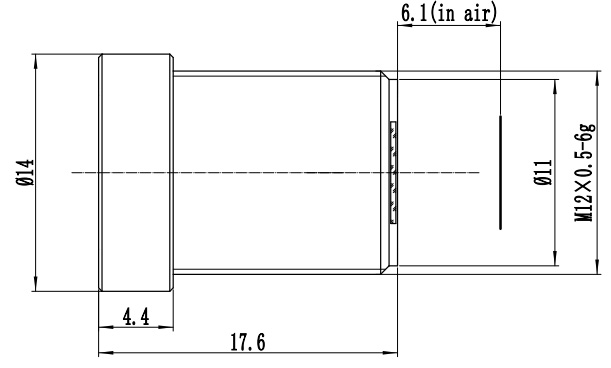

Technical Drawing:

Drawing
