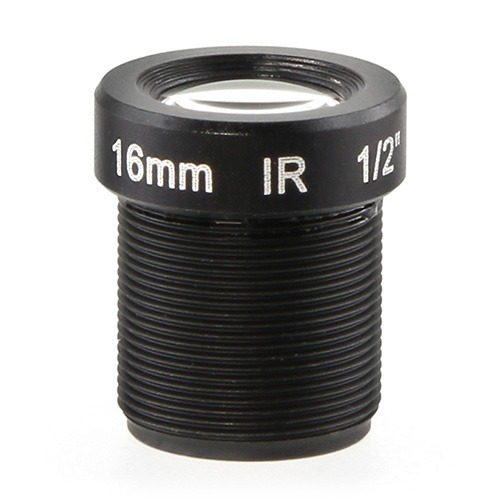

Lensagon B5M16020V2

5 Megapixel S-Mount lens for 1/2 inch sensors, F2, f=16mm

 Compare
SKU: 10923 Category:

Product Description

The S-Mount lens Lensagon B5M16020V2 is suitable for common sensors up to 5 megapixel with an image format of 1/2 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2 inch
Focal Length 16 mm
Aperture (f#) 2
MOD 0.3 m
Back Focal Length 5.75
Angle of View (D) 28.9°
Megapixel 5 MP
IR Correction Yes
IR Cut Filter No
Optical Distortion 0.244 %
Weight 5 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

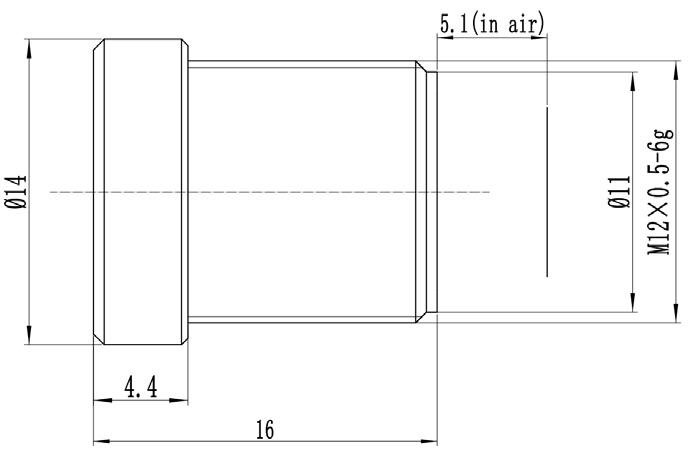

Technical Drawing:

Drawing
