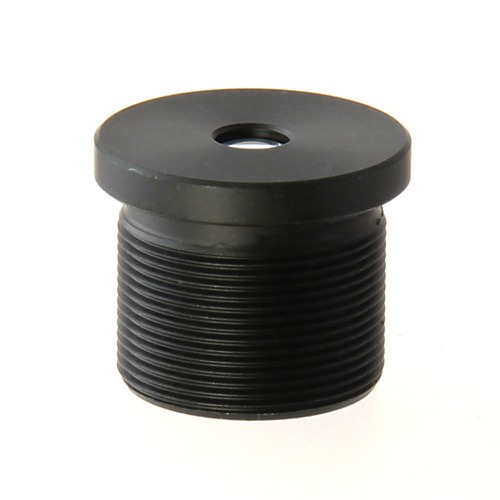

Lensagon B5M12040C

5.00 Megapixel S-Mount lens for 1/1.8 inch sensors, F4.00, f=12.00mm

 Compare
SKU: 00522 Category:

Product Description

The S-Mount lens Lensagon B5M12040C is suitable for common sensors up to 5.00 megapixel with an image format of 1/1.8 inch.

Mount S-Mount
Sensor 1/1.8 inch
Focal Length 12 mm
Aperture (f#) 4
MOD 0.10 m
Back Focal Length 8.60
Angle of View (D) 41° / H: 34.40° / V: 23.20°
Megapixel (max.) 5 MP
IR Correction No
IR Cut Filter Yes
Optical Distortion -1.18 %
Image Circle 9 mm
Iris fixed
Focus fixed
Chief ray angle 11.19 °
Compatible with

Piezolution Starter Kit M12 Autofocus Module.

pdf

Additional Information

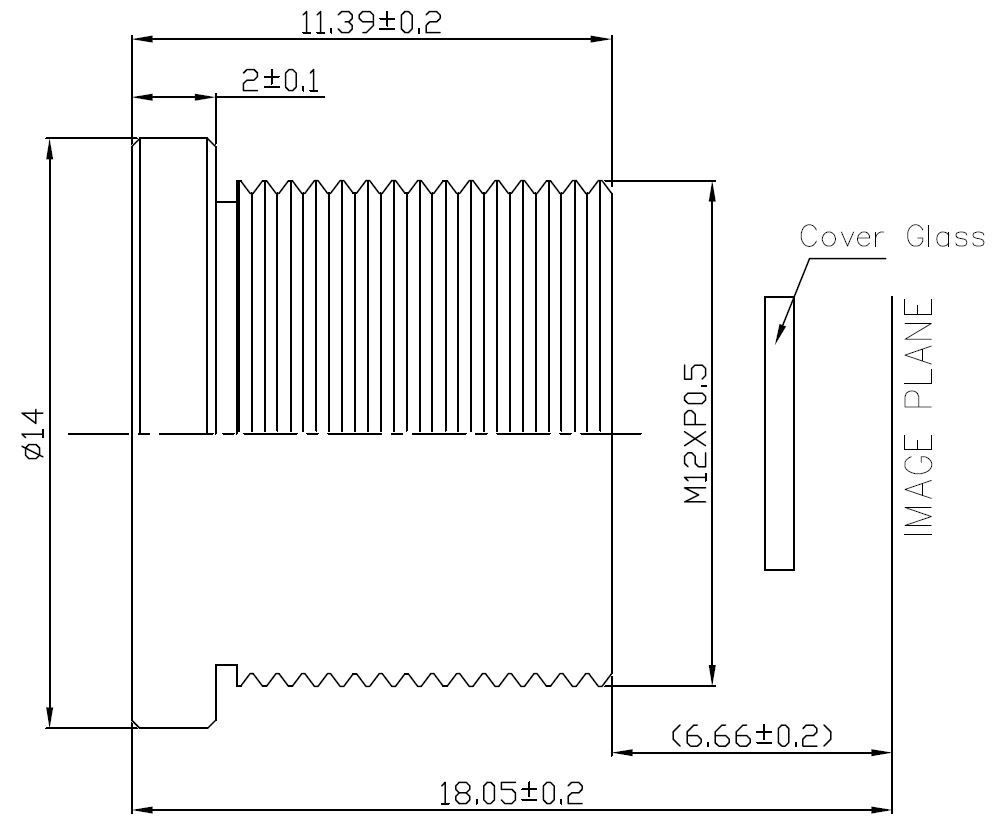

Drawing
