Lensagon B4M1920NDC

Lensagon B4M1920NDC

4 Megapixel S-Mount lens for 1/2.9 inch sensors, F2, f=1.93mm

 Compare
SKU: 00427 Category:

Product Description

Please note: The lens does not output a round, but an square image. The rings can be used to rotate and fix the square picture. CRA<10┬░, Entrancepupil D0.97mm, P=3.48mm right from first lens surface.

MountS-Mount
Sensor1/2.9 inch
Focal Length1.93 mm
Aperture (f#)2
Back Focal Length1.137
Angle of View (D)117.7°
Megapixel (max.)4 MP
IR CorrectionNo
IR Cut FilterYes
Optical Distortion-5 %
Image Circle6.6 mm
Weight5.7 g
Irisfixed
Focusfixed
TypStandard
pdf

Additional Information

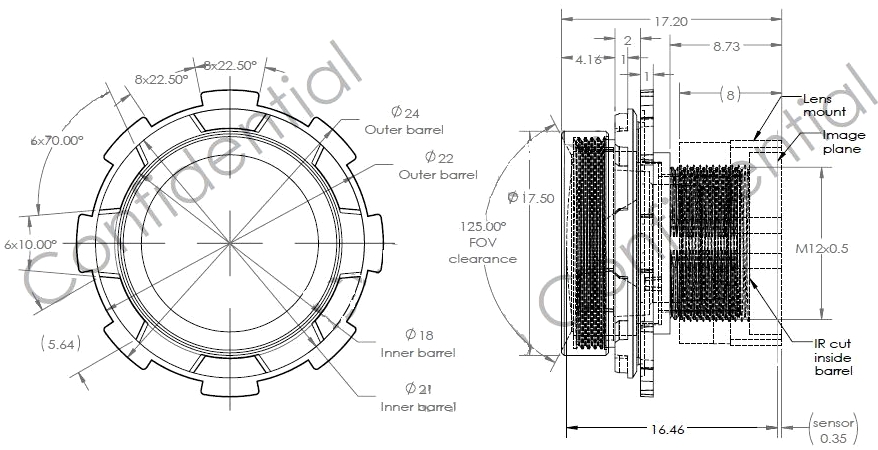

Drawing
