Lensagon B14M20020S123

14 Megapixel S-Mount lens for 1/2.3 inch sensors, F2.2, f=20mm

 Compare
SKU: 11012 Category:

Product Description

The S-Mount lens Lensagon B14M20020S123 is suitable for current sensors up to 14 megapixel with an image format of 1/2.3 inch.

Mount S-Mount
Sensor 1/2.3 inch
Focal Length 20 mm
Aperture (f#) 2.2
MOD 0.2 m
Back Focal Length 13.29
Angle of View (D) 21.5°
Angle of View (H) 17.1°
Angle of View (V) 13°
Megapixel 14 MP
IR Correction No
IR Cut Filter No
TV Distortion 0.7
Image Circle 7.67 mm
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

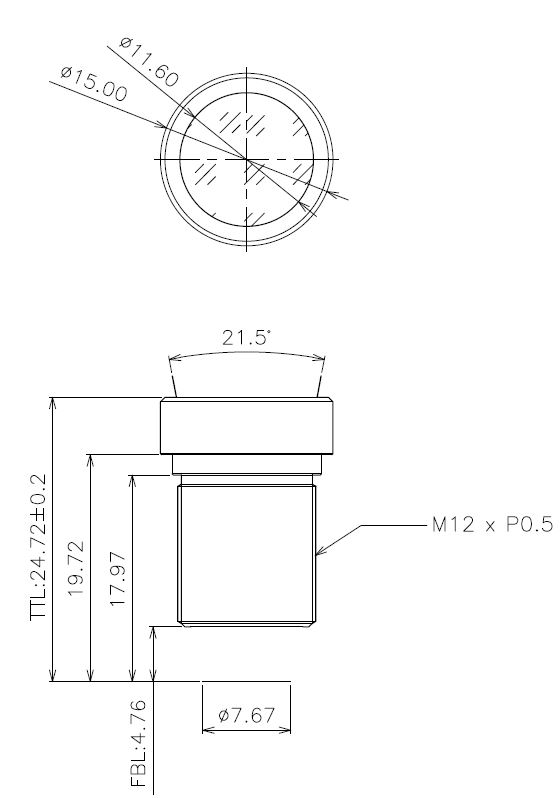

Technical Drawing:

Drawing
