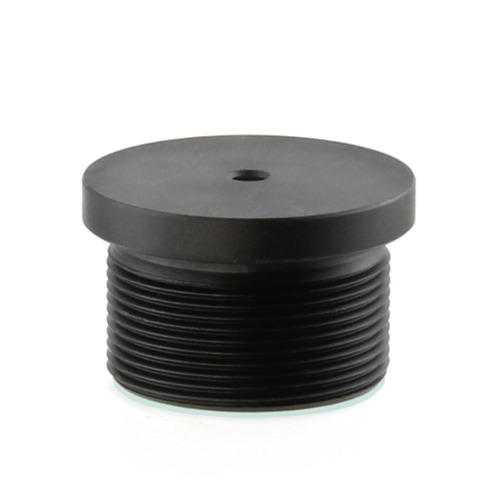

Lensagon B5M8556S12C
Last buy. Very low stock available
5 Megapixel S-Mount lens for 1/2 inch sensors, F5.6, f=8.5mm
Product Description
The S-Mount lens Lensagon B5M8556S12C is suitable for common sensors up to 5 megapixel with an image format of 1/2 inch.
| Mount | S-Mount |
|---|---|
| Sensor | 1/2 inch |
| Focal Length | 8.50 mm |
| Aperture (f#) | 5.60 |
| MOD | 0.10 m |
| Back Focal Length | 5.85 |
| Angle of View (D) | 54.30° / H: 44.10° / V: 33.20° |
| Megapixel (max.) | 5.00 MP |
| IR Correction | No |
| IR Cut Filter | Yes |
| Image Circle | 8.50 mm |
| Weight | 3.30 g |
| Iris | fixed |
| Focus | fixed |
| Chief ray angle | 8.60 ° |
