Lensagon TL12K-07-117I

Lensagon TL12K-07-117I

Linescan Object Side Telecentric Lens for 12K (5µm) sensor, Magnification: 0.7x, WD 117mm, F# 8, NA 0.0437, DOF 326um, Opt.Dist. 0.04

 Compare
SKU: 10380 Category:

Product Description

The Object Side Telecentric Lens TL12K-07-117I is suitable for sensors with an image format of 12K (5µm).

Magnification 0.7
Mount M72
Aperture 8
Working Distance (WD) 117 mm
Depth of Field (DOF) 326 μm
Resolution (Object Side) 7.7 μm
Numerical Aperture (NA) 0.0437
Image Format (max.) 12K (5µm)
Field of View (FOV) 87.8mm@12K Line CCD
Lens Type Object Side
Telecentricity 0.07
Optical Distortion (max.) 0.04 %
Special Feature Linescan
pdf

Additional Information

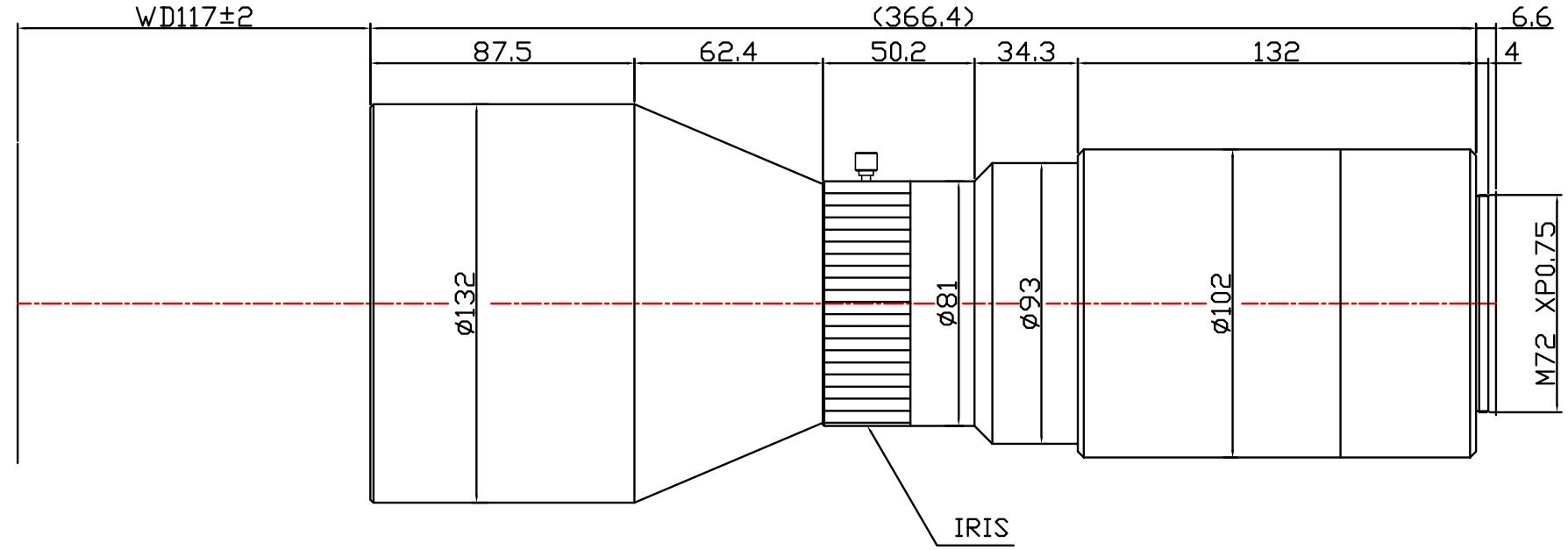

Technical Drawing:

Drawing
