Lensagon TF8MHR-058-254I

Lensagon TF8MHR-058-254I

Super High Res Object Side Telecentric Lens for 23mm (diagonal) sensor, Magnification: 0.58x, WD 254mm, F# 5, NA 0.058, DOF 654um, Opt.Dist. 0.08

 Compare
SKU: 10732 Category:

Product Description

The Object Side Telecentric Lens TF8MHR-058-254I is suitable for sensors up to 8 megapixel and with an image format of 23mm (diagonal).

Magnification0.58 x
Working Distance (WD)254 mm
Depth of Field (DOF)654 μm @ 22 μm
Resolution (Object Side)5.8 μm
Image Format (max.)23mm (diagonal)
Megapixel (max.)8 MP
Working F-Number5
Numerical Aperture (NA)0.058
Field of View (FOV)31.3mm x 23.4mm
Telecentric TypeObject Side
Telecentricity0.03 °
Optical Distortion (max.)0.08 %
MountF-Mount *

* Other mounts are available on request.

pdf

Additional Information

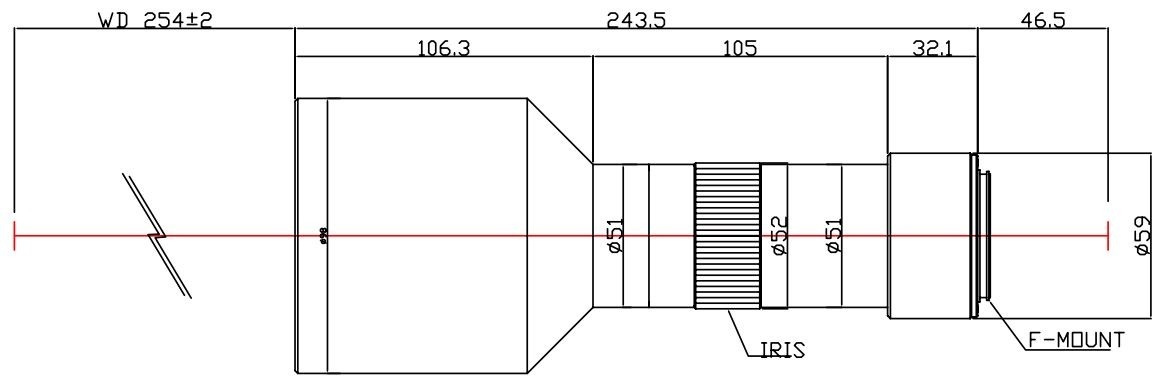

Drawing
