Lensagon TF8MHR-0348-130I

Lensagon TF8MHR-0348-130I

Super High Res Object Side Telecentric Lens for 23mm (diagonal) sensor, Magnification: 0.348x, WD 130mm, F# 6.25, NA 0.0278, DOF 2300um, Opt.Dist. 0.04

 Compare
SKU: 10730 Category:

Product Description

The Object Side Telecentric Lens TF8MHR-0348-130I is suitable for sensors up to 8 megapixel and with an image format of 23mm (diagonal).

Magnification0.348 x
Working Distance (WD)130 mm
Depth of Field (DOF)2.3 mm @ 22 μm
Resolution (Object Side)12.1 μm
Image Format (max.)23mm (diagonal)
Megapixel (max.)8 MP
Working F-Number6.25
Numerical Aperture (NA)0.0278
Field of View (FOV)52.1mm x 39.1mm
Telecentric TypeObject Side
Telecentricity0.03 °
Optical Distortion (max.)0.04 %
MountF-Mount *

* Other mounts are available on request.

pdf

Additional Information

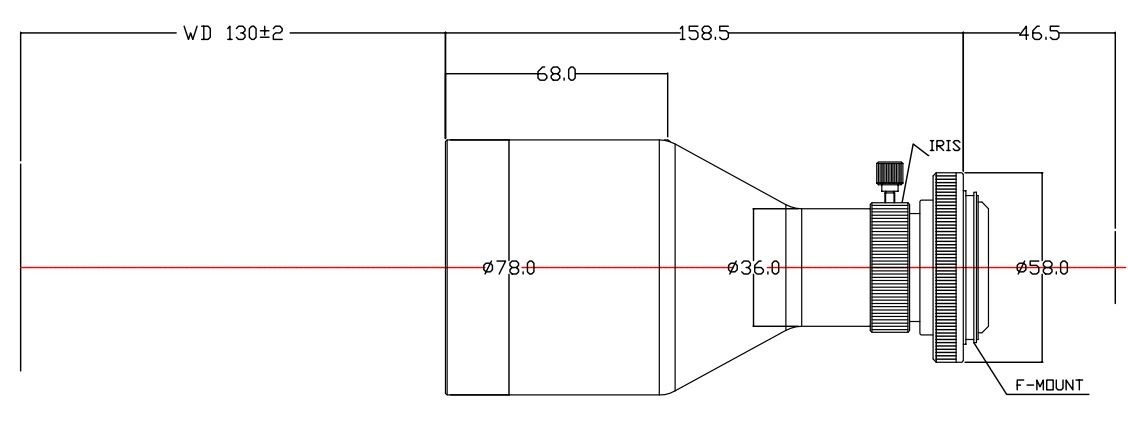

Drawing
