Lensagon TCHR-80-110C
High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 8x, WD 110mm, F# 44.4, NA 0.09, DOF 56um, Opt.Dist. 0.19, Coaxial Version
Product Description
The Object Side Telecentric Lens TCHR-80-110C is suitable for sensors with an image format of 2/3 inch.
| Magnification | 8 |
|---|---|
| Mount | C-Mount |
| Aperture | 44.4 |
| Working Distance (WD) | 110 mm |
| Depth of Field (DOF) | 56 μm |
| Resolution (Object Side) | 3.72 μm |
| Numerical Aperture (NA) | 0.09 |
| Image Format (max.) | 2/3 inch |
| Field of View (FOV) | 1.1mm x 0.82mm@2/3″ CCD |
| Lens Type | Object Side |
| Telecentricity | 0.05 |
| Optical Distortion (max.) | 0.19 % |
| Special Feature | High Res |
Additional Information

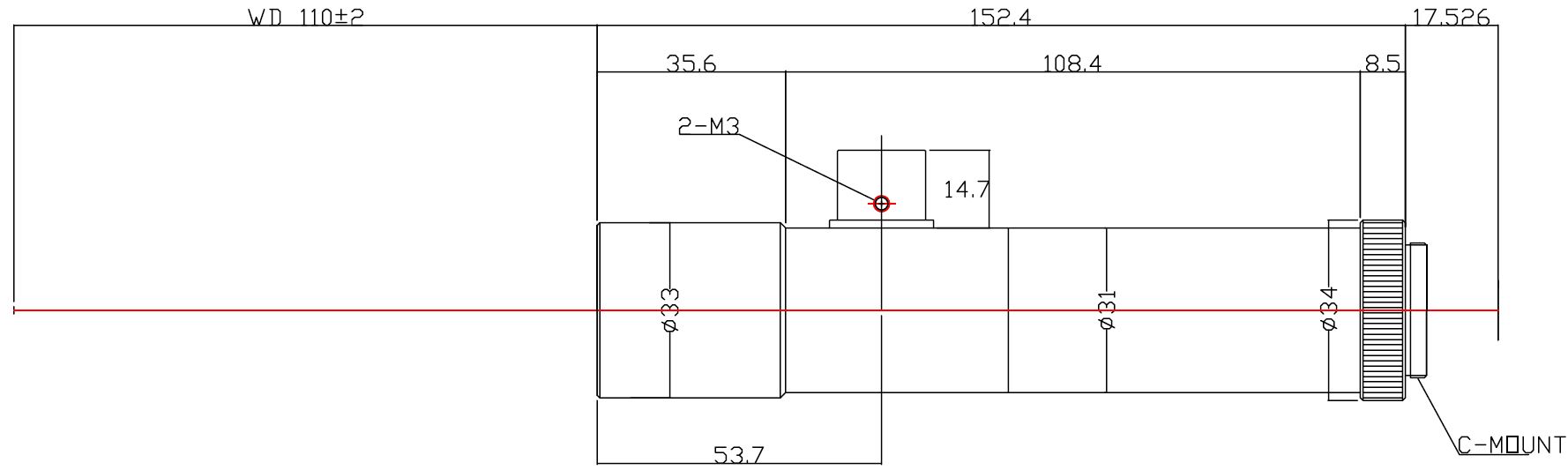

Technical Drawing:
