Lensagon TCHR-40-110C

High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 4x, WD 110mm, F# 22.2, NA 0.09, DOF 111um, Opt.Dist. 0.03, Coaxial Version

 Compare
SKU: 10538 Category:

Product Description

The Object Side Telecentric Lens TCHR-40-110C is suitable for sensors with an image format of 2/3 inch.

Magnification 4.00 x
Working Distance (WD) 110.00 mm
Depth of Field (DOF) 111.00 μm @ 40.00 μm
Resolution (Object Side) 3.72 μm
Image Format (max.) 2/3 inch
Working F-Number 22.20
Numerical Aperture (NA) 0.09
Field of View (FOV) 2.2mm x 1.65mm @ 2/3
Telecentric Type Object Side
Telecentricity 0.05 °
Optical Distortion (max.) 0.03 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

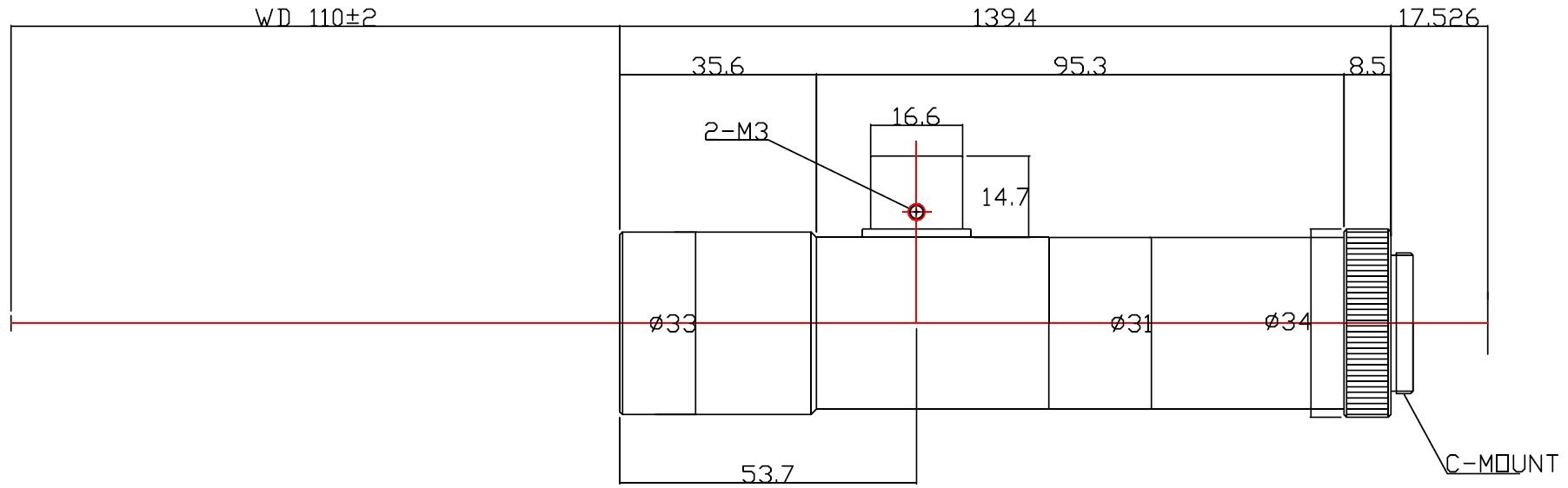

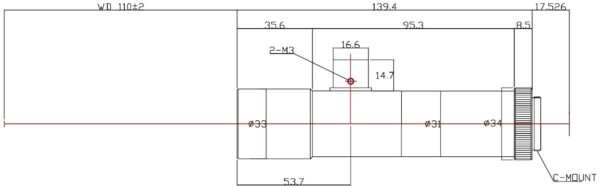

Drawing
